Jet 1SS-1C-30 Prewired 230V 1PH 1-Ton Hoist w/ 30′ Lift (113000)

Jet 1SS-1C-30 Prewired 230V 1PH 1-Ton Hoist w/ 30′ Lift (113000) is a 1-ton electric hoist designed for efficient and safe lifting applications. Built with durability in mind, this hoist is suitable for various industrial and commercial settings.

KEY FEATURES AND BENEFITS:

• Powerful and efficient: Lifts up to 1 ton with a 30-foot lift height, ideal for various tasks.
• Safe operation: Equipped with overload protection, thermal overload protection, and a DC electromagnetic brake to prevent accidents.
• Durable construction: All-steel construction with a powder coat finish for long-lasting performance.
• Easy to use: Features user-friendly controls for convenient operation.

SPECIFICATIONS:

• Capacity: 1 ton (2200 lbs)
• Lift height: 30 feet
• Motor: 1-3/4 HP, 230V, 1 phase
• Duty cycle: 25% (H3)

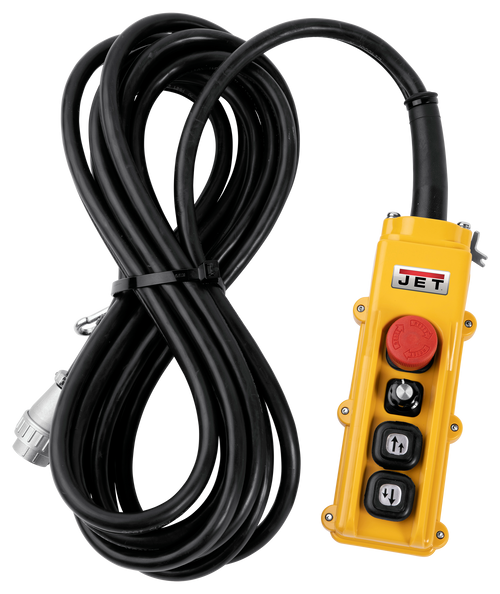

• Control: NEMA 4x compliant push button pendant
• Weight: 189 lbs
• Headroom: 24-7/16 inches
• Overall width: 11.81 inches
• Motor current: 12 amps

HOW TO USE:

1. Inspect the hoist: Check for any visible damage before use.
2. Connect to power: Ensure the hoist is connected to a properly grounded 230V power supply.
3. Attach load: Securely attach the load to the hoist hook using a suitable chain sling.
4. Operate controls: Use the up and down buttons on the pendant control to raise or lower the load.
5. Monitor load: Continuously monitor the load during lifting and lowering operations.
6. Lower load: Carefully lower the load to the desired position.
7. Disconnect power: Turn off the power to the hoist after use.

BENEFITS OF USING JET 1SS-1C-30 PREWIRED 230V 1PH 1-TON HOIST W/ 30′ LIFT (113000):

• Increased productivity: Efficiently lift heavy loads, saving time and labor.
• Improved safety: Built-in safety features protect both operators and equipment.
• Reduced maintenance: Sealed gear train and durable construction minimize downtime.
• Versatile applications: Suitable for a wide range of industrial and commercial tasks.

FEATURES:

• Slip clutch overload protection
• Thermal overload protection
• DC electromagnetic brake
• Upper and lower limit switches
• Sealed oil bath gear train
• Grade 80 load chain
• All-steel construction with powder coat finish
• NEMA 4x compliant push button control pendants
• Load tested to 125% of capacity
