Tripp Lite by Eaton PDUV20-72 36-Outlet PDU

Tripp Lite by Eaton PDUV20-72 36-Outlet PDU
General Information

Manufacturer:

Tripp Lite by Eaton

Manufacturer Part Number:

PDUV20-72

https://tripplite.eaton.com/

Brand Name:

Tripp Lite by Eaton

Product Model:

PDUV20-72

Product Name:

PDUV20-72 36-Outlet PDU

Marketing Information:

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices

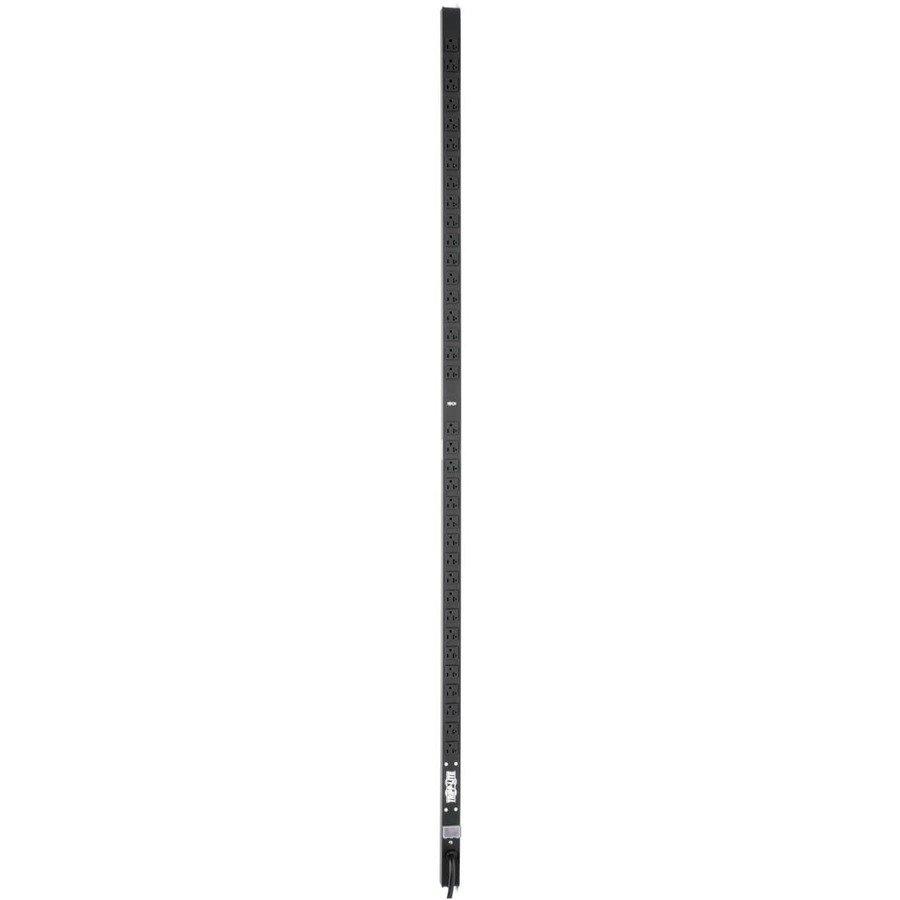

The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter. Typical Applications Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Product Type:

PDU

Technical Information

PDU Type:

Basic

Phase:

Single Phase

Plug/Connector Type:

NEMA 5-20PNEMA L5-20P

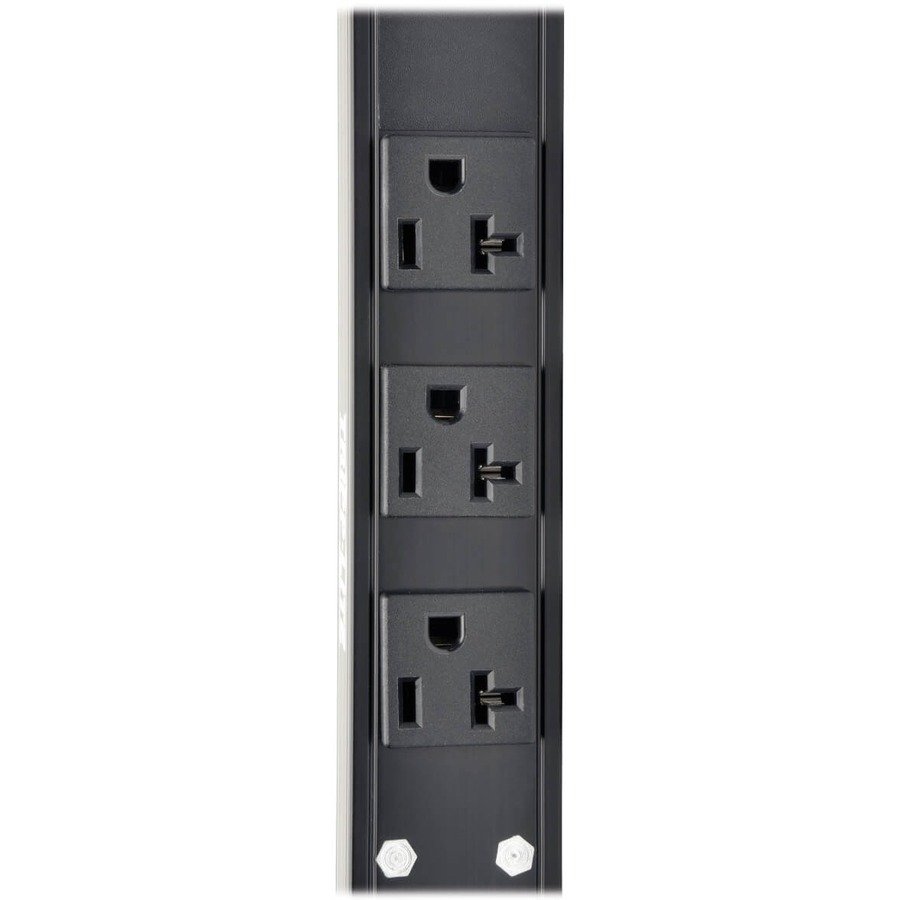

Receptacle Type:

NEMA 5-15/20R

Receptacle Detail:

36 x NEMA 5-15/20R

Protection Type:

Overload Protection

Power Description

Input Voltage:

120 V AC

Output Voltage:

100 V AC120 V AC127 V AC

Power Rating (Watt):

2.03 kW

Input Current:

20 A

Physical Characteristics

Mounting Orientation:

Vertical

Mount Type:

Rack-mountable

Rack Height:

0U

Height:

72.47″ (1840.74 mm)

Width:

1.64″ (41.66 mm)

Depth:

1.50″ (38.10 mm)

Weight (Approximate):

2.79 kg

Miscellaneous

Package Contents:

PDUV20-72 36-Outlet PDU L5-20P to 5-20P Input Plug Adapter Plug Retention Brackets with Installation Hardware Rack-Mounting Hardware Owner’s Manual

Country of Origin:

China

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

2 Year
