Tripp Lite by Eaton Metered PDUMH30 12-Outlets PDU

Tripp Lite by Eaton Metered PDUMH30 12-Outlets PDU
General Information

Manufacturer:

Tripp Lite by Eaton

Manufacturer Part Number:

PDUMH30

https://tripplite.eaton.com/

Brand Name:

Tripp Lite by Eaton

Product Series:

Metered

Product Model:

PDUMH30

Product Name:

Metered PDUMH30 12-Outlets PDU

Marketing Information:

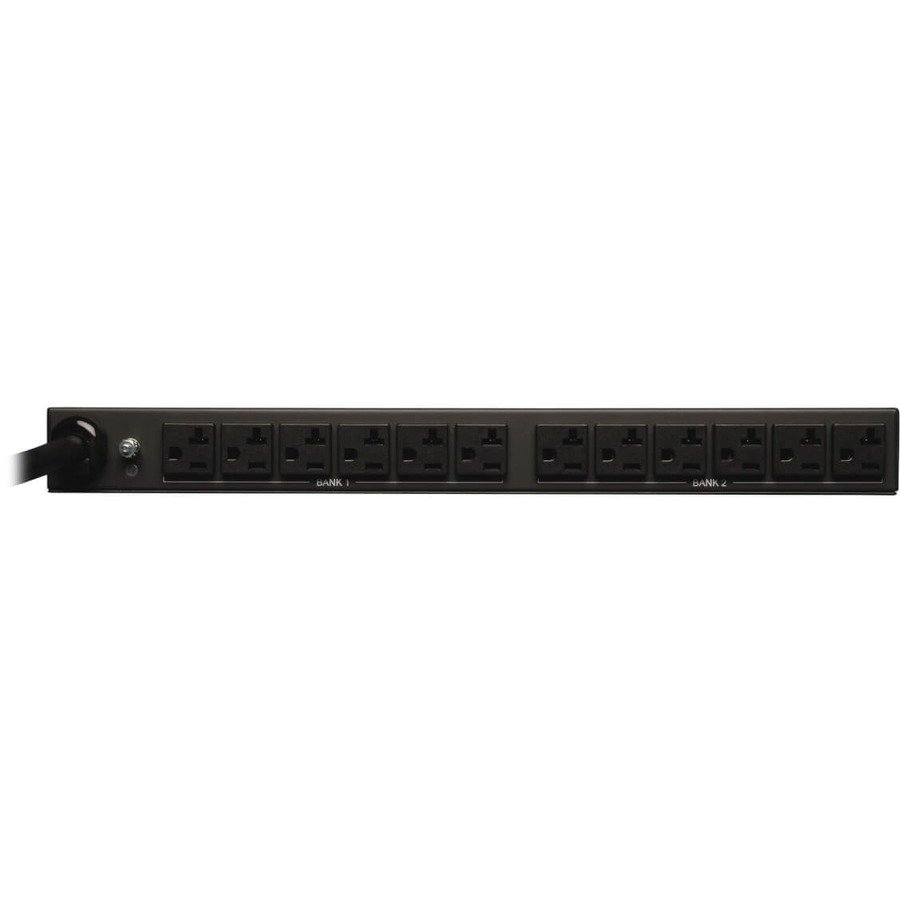

Tripp Lite’s PDUMH30 AC power distribution unit offers a digital current monitor and provides 30 amps of 120 volt capacity in a versatile multi-mount cabinet (agency de-rated to 24A continuous). Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual input current monitoring data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Output is arranged in two separately breakered 20A output loading banks. Unfiltered electrical pass-through without a power switch makes the PDUMH30 ideal for distributing UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-30P input plug. TVSS grounding lug and rugged all-metal rackmount case design.

Product Type:

PDU

Technical Information

Plug/Connector Type:

NEMA L5-30P

Receptacle Type:

NEMA 5-15/20R

Receptacle Detail:

12 x NEMA 5-15/20R

Protection Type:

Overload Protection

Power Description

Input Voltage:

120 V AC

Output Voltage:

120 V AC

Physical Characteristics

Mounting Orientation:

Horizontal/Vertical

Mount Type:

Rack-mountable

Rack Height:

1U

Height:

1.75″ (44.45 mm)

Width:

17.50″ (444.50 mm)

Depth:

6.50″ (165.10 mm)

Weight (Approximate):

3.18 kg

Miscellaneous

Package Contents:

Metered PDUMH30 12-Outlets PDUOwner’s Manual with Warranty Information

Country of Origin:

China

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

2 Year
