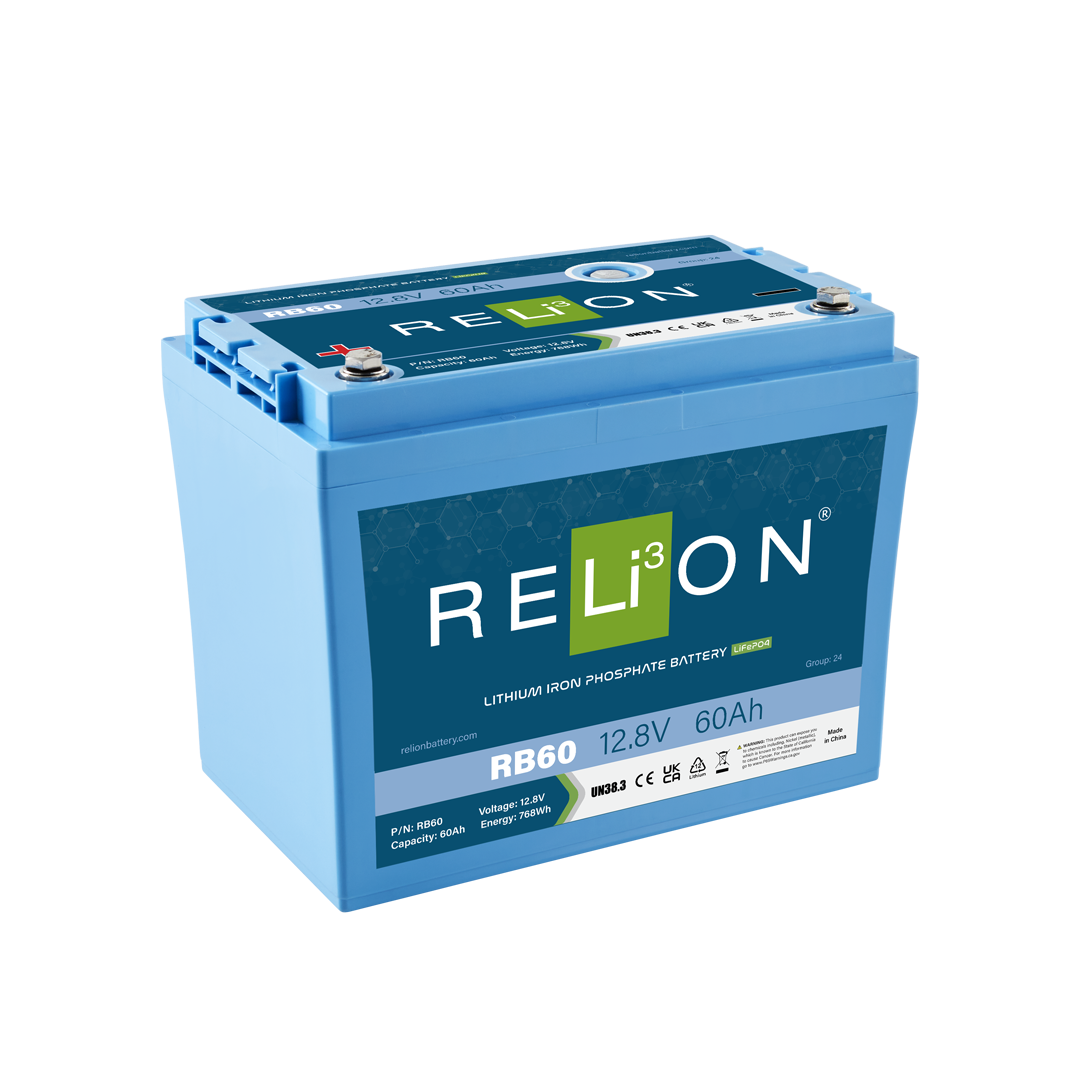

Relion RB60 12V 60Ah LiFePO₄ Deep Cycle Lithium Battery – Group 24 – LITH12-60
Call us 24/7 +1 778 732 1020
CANADA WIDE PICK UP & SHIPPING
FLASH SALE: UP TO 40% OFF GOLF CART BATTERIES
Call us 24/7 +1 778 732 1020

Relion RB60 12V 60Ah LiFePO₄ Deep Cycle Lithium Battery – Group 24 – LITH12-60

Original price was: $1,869.23.Current price is: $1,121.54.

In stock
Buy it now

Lightweight

RELiON lithium batteries provide more power than lead-acid batteries and are typically half the weight. Boosting both performance and agility on the water.

More Usable Capacity

Lead-acid batteries are typically sized up to two times your energy needs to account for extended periods without sun and less usable energy with higher rates of discharge. Plus, you are typically cautioned to limit your use to 50% of the rated capacity, as using more can significantly reduce performance. Lithium batteries provide 100% of their rated capacity, regardless of the rate of discharge. And, you can use it all and still get substantially longer cycle life.

Long Life

RELiON lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of the rated capacity after 3,500 cycles.

Fast Charging

RELiON lithium batteries charge much faster than traditional lead-acid batteries, and they’re packed with more usable energy and up to 10 times longer life so you’re always ready to go!

Partial State of Charge Tolerant

Partial state of charge, known as PSOC, which is a killer of lead-acid batteries, does not affect performance or battery life of a lithium battery. Sometimes batteries don’t get fully charged, or they regularly operate in a partial state of charge. Either way, you can count on RELiON lithium batteries living a long and productive life.

Temperature Tolerant

Lithium batteries can handle a wide variety of conditions and are even 2.5x more efficient at low temperatures than lead-acid while being able to safely operate up to 149°F (65°C).

Eco-Friendly & Safe

RELiON lithium batteries are the ultimate clean energy. No gassing, no fumes, and no pollution. Enjoy reliable power, while protecting the environment, using these non-hazardous batteries.

Electrical Specifications

Nominal Voltage12.8 V
Nominal Capacity60 Ah
Capacity @ 25A144 min
Energy768 Wh
Resistance≤40 mΩ @ 50% SOC
Efficiency99%
Self Discharge<3% per Month
Maximum Batteries Connected in Series3

Mechanical Specifications

Dimensions (L x W x H)10.2 x 6.6 x 8.2” (260 x 168 x 210 mm)
Weight15.9 lbs (7.20 kg)
Terminal TypeM8 x 1.25
Terminal Torque80 – 100 in-lbs (9 – 11 N-m)
Case MaterialABS
Enclosure Protection (Waterproof Rating)IP67
Cell Type – ChemistryCylindrical – LiFePO4

Discharge Specifications

Maximum Continuous Discharge Current60 A
Peak Discharge Current140 A (1.5 s ±0.5 s)
Discharge Over-Current Protection160 A (9 ms ±4 ms)
Recommended Low Voltage Disconnect10.0 V
Discharge Under-Voltage Protection9.3 V (2.325 ±0.1 vpc) (144 ms ±30 ms)
Reconnect Voltage10.5 V (2.625 ±0.24 vpc)
Short Circuit Protection Response Time100uS

Charge Specifications

Recommended Charge Current12 A
Maximum Continuous Charge Current60 A
Charge Current 14 to 36ºF (-10 to 0ºC)≤0.1 C (6 A)
Charge Current -4º to 14ºF (-20 to -10 ºC)≤0.05 C (3 A)
Recommended Charge Voltage14.2 V – 14.6 V
BMS Charge Voltage Cut-Off15.4 V (3.85 ±0.025 vpc) (1.2 s ±0.3 s)
Reconnect Voltage14.5 V (3.62 ±0.05 vpc)
Balancing Voltage14.4 V (3.6 ±0.025 vpc)

Temperature Specifications

Discharge Temperature-4 to 140 °F (-20 to 60 °C)
Charge Temperature*32 to 113 °F (0 to 45 °C)
Recommended Storage Temperature23 to 95 °F (-5 to 35°C)
BMS High Temperature Cut-Off167 °F (75 ºC)
Reconnect Temperature122°F (50 ºC)

Compliance Specifications

CertificationsUN38.3 (battery)
CE & UKCA (battery)
UL1642 (cells) (File# MH64523)
IEC62133 (cells)
Shipping ClassificationUN 3480, CLASS 9

Performance Characteristics

Charge Voltage Char Chart 12 V graph

Charge Voltage Soc Chart 12 V graph

Discharge Voltage At Various Rates 12 V graph

Discharge Voltage Chart 12 V graph

Life Vs Lead Acid Chart graph

Cycle Life Vs Depth Discharge Chart graph

Weight82.69 lbs
Dimensions20.47 × 10.51 × 8.98 in
Features

Drop-In SLA/AGM Replacement, Fast Charging Compatible, High Discharge Rate (Starter Use), Smart BMS

Form Factor

Prismatic Cell Lithium

Battery Type

LiFePO4

Chemistry

Lithium Iron Phosphate

Application

Marine House Power, Off-Grid, RV, Solar Power

Cycle Life

3500 cycles @ 100% DoD

Terminal Type

M8 Studs

Battery Group Size

8D

Part No

RB60

Warranty

10 Year

Voltage

12

Capacity (Ah)

60

Brand
