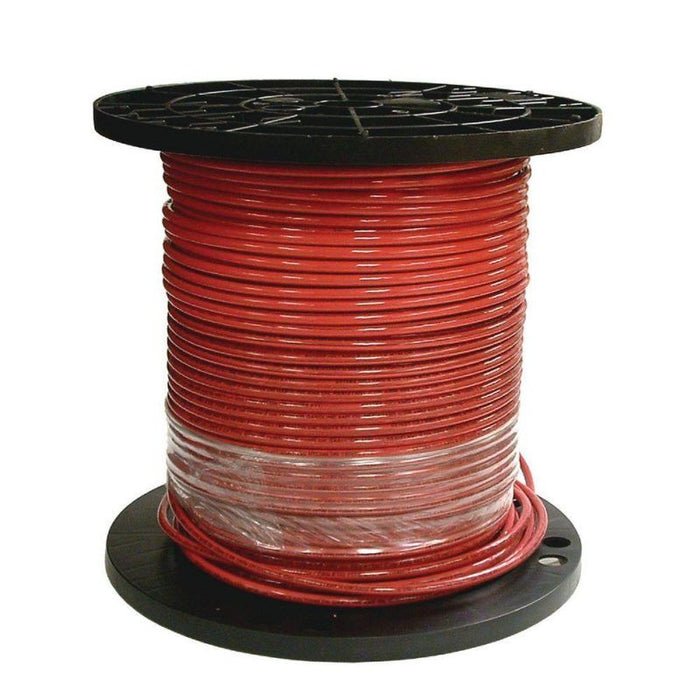

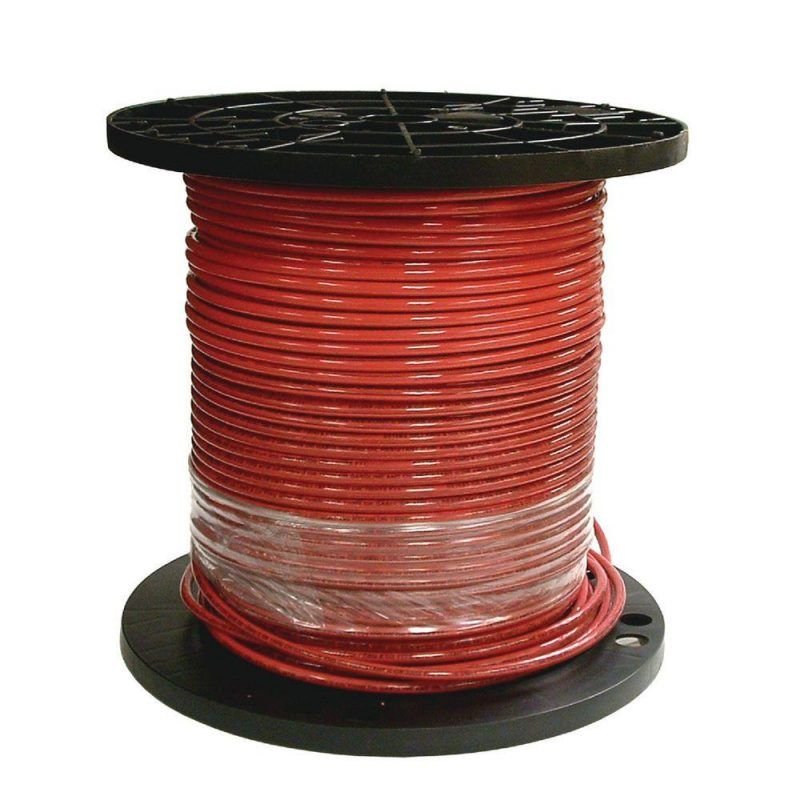

Raw Cable RPVU10-RED RPVU Red cable #10

• Rated 90°C wet and dry
• Rated for direct burial
• Stranded copper, flexible, 19 strands
• XLPE insulation
• Deformation-resistant at high temperatures
• Excellent moisture resistance, exceeds UL 44
• Stable electrical properties over a broad temperature range
• Excellent resistance to crush and compression cuts
• Resistant to most oils and chemicals
• UV/sunlight resistant
• Meets cold bend and cold impact tests at -40°C

Industry Compliances

• CSA C22.2 No. 38 – Thermoset-Insulated Wires and Cables
• CSA SUN RES – for Sunlight Resistant rating
• CSA C22.2 No. 271-11
• ASTM B3, B8, B787
• RoHS Compliant

Flame Test Compliances

• FT1 – Flame Test (1,706 BTU/Hr nominal – Vertical Wire Flame Test)
• FT4 – Flame Test (70,000 BTU/Hr – Vertical Tray Flame Test)
• FT1 for 600V, 1kV or 2kV
• FT1 and FT4 on 1kV/2kV only
