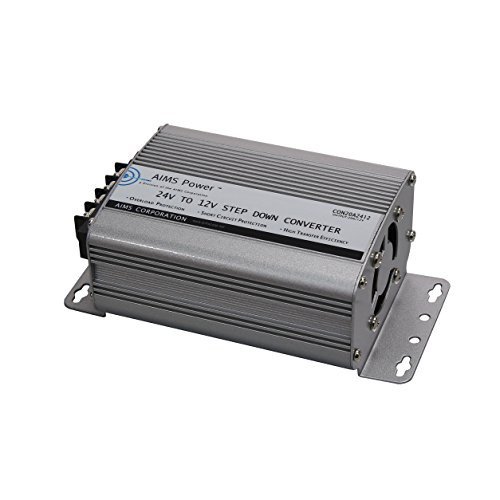

AIMS Power CON20A2412 20 Amp 24V-12V DC Converter is a compact and efficient step-down DC-DC converter designed for use in automotive, solar, and other power systems. It features over-current, over-voltage, and short-circuit protection to ensure safe and reliable performance. The AIMS Power CON20A2412 is perfect for negative ground systems and offers features like low and high-battery shutdown, making it ideal for sensitive applications. Whether you’re working with solar systems, batteries, or inverters, this converter provides a reliable power conversion solution.
Specifications:
- Input Voltage Range: 20 VDC to 37 VDC
- Output Voltage Range: 12.5 VDC to 13.5 VDC
- Maximum Output Current: 20 Amps
- LED Indicator: Green LED to confirm power on
- Protections: DC input low and high battery shutdown, DC output short, over-current, and over-voltage protection
- Size: 6.5 x 4.02 x 2.52 inches
- Weight: 0.97 lbs
- Certification: CE EN61000-6-3:2007+A1:2011, CE EN61000-6-1:2007
- Usage: Ideal for negative ground systems
- Color: Green
