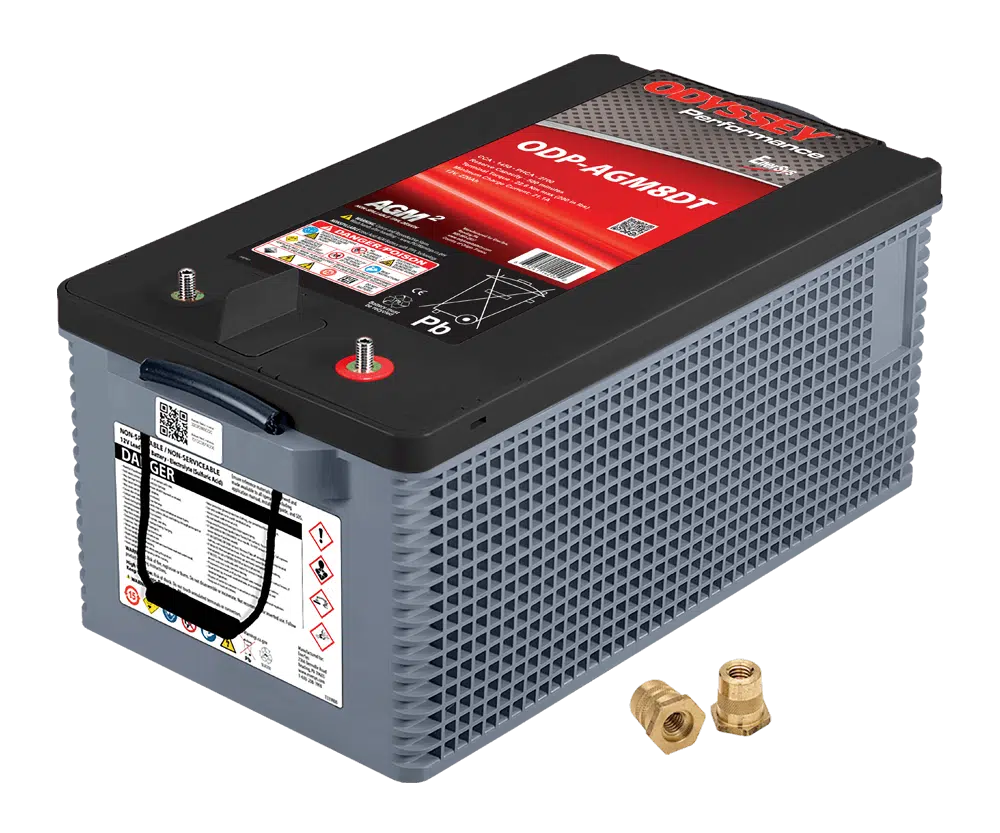

Odyssey ODP-AGM8DT 12V 220Ah AGM Deep Cycle Battery – Group 8D Heavy Duty
The Odyssey ODP-AGM8DT is a premium 12V Group 8D AGM battery engineered for heavy-duty commercial vehicles, buses, construction equipment, agricultural machinery, marine vessels, and industrial applications. Built with Thin Plate Pure Lead (TPPL) AGM technology, it delivers exceptional starting power, deep cycle performance, rapid recharge capability, and vibration resistance for the most demanding environments.
Key Features
| Battery Type | Absorbent Glass Mat (AGM) |
|---|
| Voltage | 12 Volts |
|---|
| Group Size | 8D |
|---|
| Maintenance | Maintenance-Free & Spill-Proof |
|---|
| Technology | Thin Plate Pure Lead (TPPL) |
|---|
| Applications | Commercial Trucks, Buses, Heavy Equipment, Construction, Agriculture, Marine & Industrial Equipment |
|---|
Battery Specifications
| Voltage | 12V |
|---|
| 20Hr Capacity | 220 Ah |
|---|
| 10Hr Capacity | 211 Ah |
|---|
| Cold Cranking Amps (CCA) | 1450 A |
|---|
| Hot Cranking Amps (HCA) | 2150 A |
|---|
| Marine Cranking Amps (MCA) | 1800 A |
|---|
| Pulse Hot Cranking Amps (PHCA) | 2700 A |
|---|
| Reserve Capacity | 500 Minutes |
|---|
| Internal Resistance | 1.7 mΩ |
|---|
| Short Circuit Current | 6200 A |
|---|
| Recommended Minimum Charging Current | 21.1 A |
|---|
| Terminal Type | 3/8″-16 Stud with SAE Terminal Adapter Kit Included |
|---|
| Torque Specification | N/A |
|---|
| Operating Temperature | -40°F (-40°C) to 140°F (60°C) |
|---|
| Recommended Storage Temperature | 68°F (20°C) |
|---|
| UPC | 635241142020 |
|---|

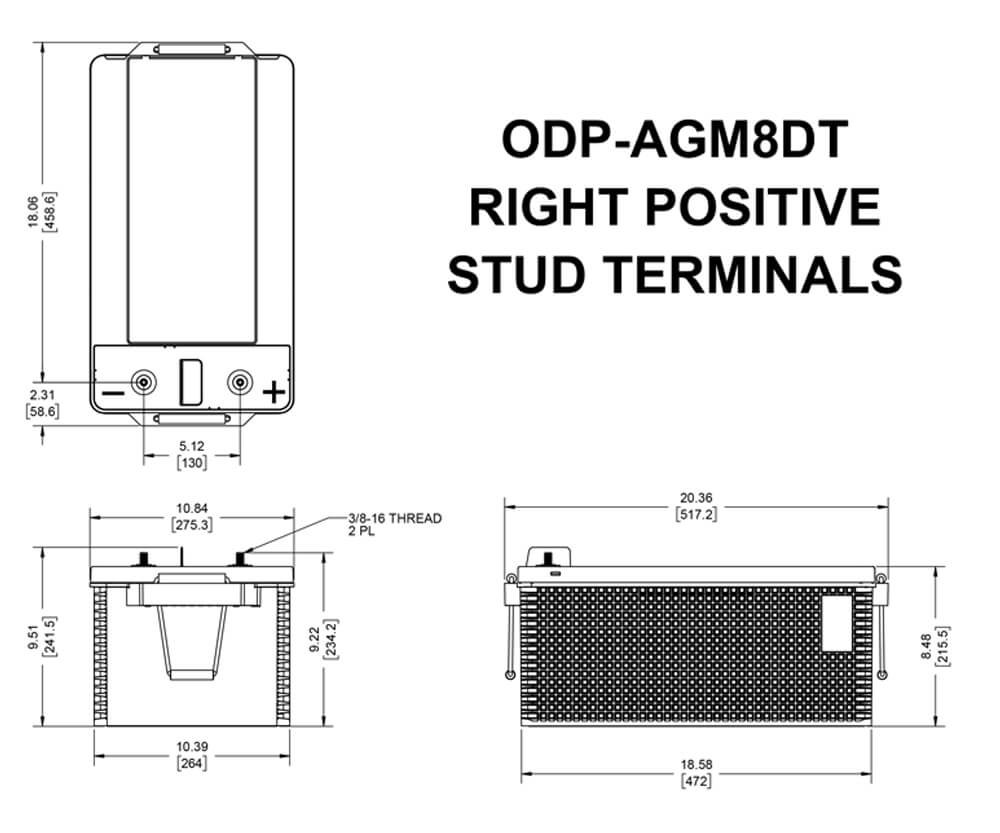

Dimensions & Weight
| Length | 20.40 in (518 mm) |
|---|
| Width | 10.80 in (274 mm) |
|---|
| Height (Container) | 8.50 in (216 mm) |
|---|
| Height (Including Terminals) | 9.50 in (241 mm) |
|---|
| Weight | 152 lbs (69 kg) |
|---|
Applications
| Commercial Trucks | ✔ |
|---|
| Buses & Coaches | ✔ |
|---|
| Construction Equipment | ✔ |
|---|
| Agricultural Equipment | ✔ |
|---|
| Mining Equipment | ✔ |
|---|
| Marine Applications | ✔ |
|---|
| Industrial Equipment | ✔ |
|---|
| Emergency & Standby Power | ✔ |
|---|
Why Choose the Odyssey ODP-AGM8DT?
| Long Service Life | Designed to deliver extended cycle life compared to conventional flooded batteries. |
|---|
| High Starting Power | 1450 CCA and 2700 PHCA provide reliable engine starting in extreme temperatures. |
|---|
| Deep Cycling Capability | Excellent for applications requiring both engine starting and deep cycling. |
|---|
| Fast Recharge | Accepts higher charging currents for reduced downtime. |
|---|
| Maintenance-Free | Sealed AGM construction eliminates water maintenance and minimizes acid leakage. |
|---|
| Extreme Vibration Resistance | Ideal for heavy-duty off-road and industrial environments. |
|---|
