EVGA SuperNOVA 1000W Power Supply

EVGA SuperNOVA 1000W Power Supply
EVGA SuperNOVA 1000W Power Supply

Internal – 120 V AC, 230 V AC Input – 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output – 1 kW – Active PFC – 1 +12V Rails – 1 Fan(s) – ATI CrossFire Supported – NVIDIA SLI Supported – 93% Efficiency

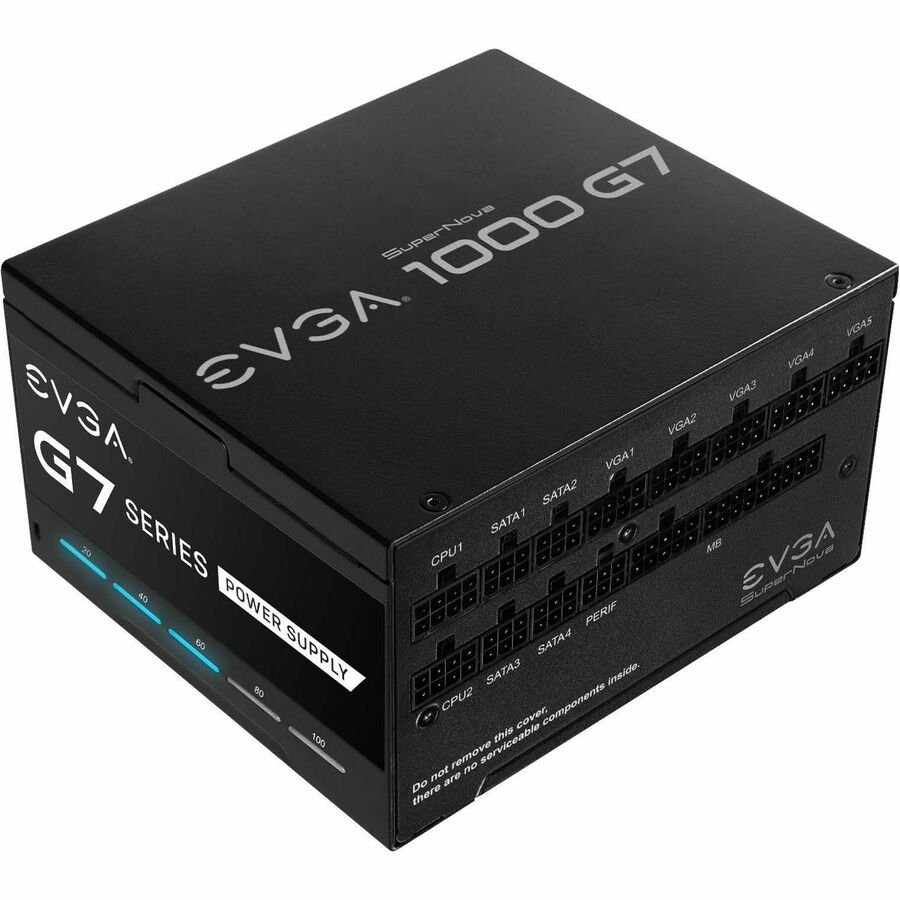

Introducing the EVGA SuperNOVA G7 – the most efficient, micro-sized 80 Plus? Gold-certified ATX power supply available. At only 130mm length, these power supplies find enough space to pack a half-bridge LLC Resonant Controller and DC-DC design, along with 100% Japanese Capacitors and better layout placement to allow the SuperNOVA G7 to reach near-Platinum efficiency. Despite its size, these units remain whisper quiet with a 120mm FDB fan and EVGA ECO Mode to keep the power supply silent at medium to low loads, which can be monitored in real-time with the System Load Indicator Bars on the side of the power supply. Backed with EVGA’s 10-Year Limited Warranty and a full suite of protections, the EVGA SuperNOVA G7 is ready for play.

Package Contents:

SuperNOVA 1000W Power Supply Power ON Self Tester

General Information

Manufacturer:

EVGA Corporation

Manufacturer Part Number:

220G71000X1

Manufacturer Website Address:

http://www.evga.com

Brand Name:

EVGA

Product Line:

SuperNOVA

Product Name:

SuperNOVA 1000W Power Supply

Marketing Information:

Product Type:

Power Supply

Technical Information

Specification Compliance:

ATX12VEPS12V

Efficiency:

93%

Power Factor Correction (PFC):

Active

Number of Fans:

1

Protection Type:

Over VoltageUnder VoltageOver CurrentOver PowerOver TemperatureShort Circuit

Modular:

Yes

ATI CrossFire Supported:

Yes

NVIDIA SLI Supported:

Yes

Features:

Low Noise

Reliability

MTBF:

100000 Hour

Power Description

Number of +12V Rails:

1

Input Voltage:

120 V AC230 V AC

Output Voltage:

3.3 V DC5 V DC12 V DC-12 V DC5 V SB

Output Voltage Detail:

3.3 V DC @ 24 A5 V DC @ 24 A-12 V DC @ 0.5 A5 V DC @ 3 A12 V DC @ 83.3 A

Output Current:

24 A83.30 A500 mA3 A

Output Power:

1 kW

Input Frequency:

60Hz

Environmental Conditions

Minimum Operating Temperature:

32?F (0?C)

Maximum Operating Temperature:

122?F (50?C)

Physical Characteristics

Form Factor:

Internal

Height:

3.35″ (85 mm)

Width:

5.91″ (150 mm)

Weight (Approximate):

1.72 kg

Miscellaneous

Package Contents:

SuperNOVA 1000W Power Supply Power ON Self Tester

Certifications & Standards:

TUV CB CE FCC RCM cTUVus

Environmentally Friendly:

Yes

Energy Efficiency Certification:

80 Plus Gold

Energy Efficiency Compliance:

Energy-related Products Directive Lot 3 (ErP Lot 3)

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty:

10 Year
