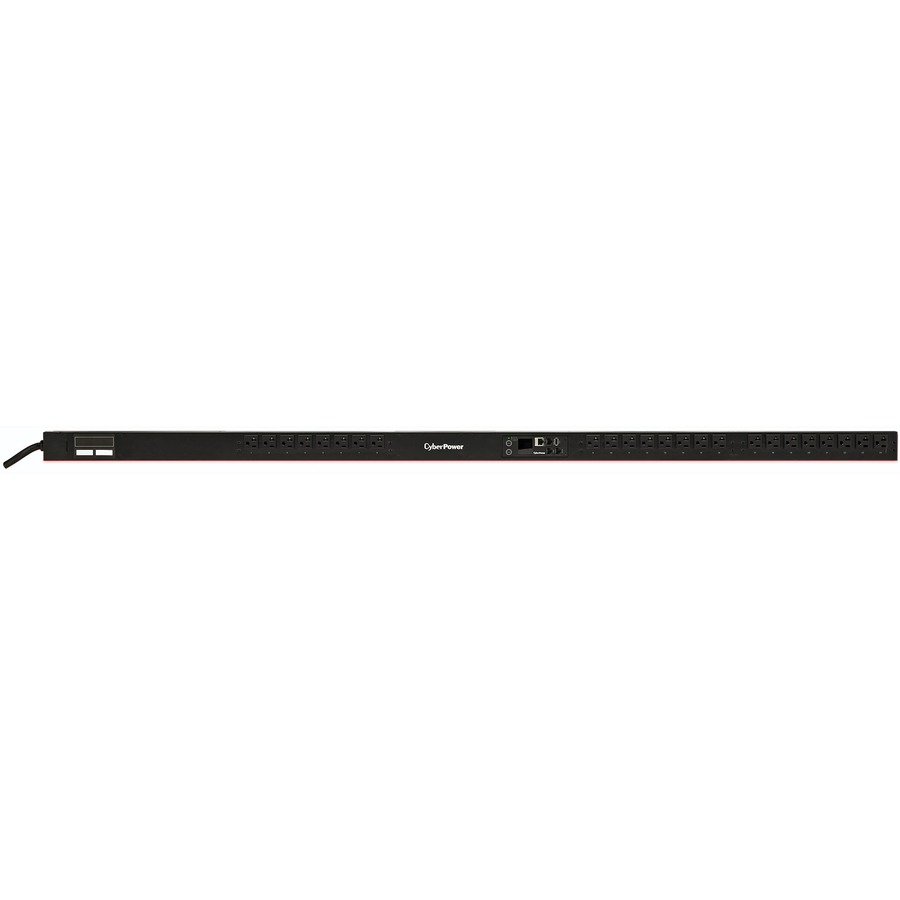

CyberPower PDUs PDU31101 Monitored – Automated notifications: E-mail, SMS, Text and SNMP Trap

CyberPower PDUs PDU31101 Monitored – Automated notifications: E-mail, SMS, Text and SNMP Trap
General Information

Manufacturer:

CyberPower Systems, Inc

Manufacturer Part Number:

PDU31101

Home

Brand Name:

CyberPower

Product Series:

Monitored PDU

Product Model:

PDU31101

Product Name:

PDU31101 24-Outlets PDU

Marketing Information:

The CyberPower PDU31101, a 24-outlet (front), 0U rackmount monitored power distribution unit (PDU) provides 120V 20A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-20P plug with unfiltered electrical pass-through. (May be converted to non-locking NEMA 5-20P plug with included adapter.) Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD. The PDU31101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

Product Type:

PDU

Technical Information

PDU Type:

Monitored

Phase:

Single Phase

Plug/Connector Type:

NEMA L5-20P

Receptacle Type:

NEMA 5-20R

Receptacle Detail:

24 x NEMA 5-20R

Power Description

Input Voltage:

120 V AC

Output Voltage:

100 V AC120 V AC

Output Voltage Range:

100 V AC – 120 V AC

Input Current:

20 A

Management

Management:

Protocols:
IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD

Remote Outlet Switching:

No

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Product Color:

Black

Mounting Orientation:

Vertical

Mount Type:

Rack-mountableWall-mountable

Rack Height:

0U

Cord Length:

10 ft

Height:

65.50″ (1663.70 mm)

Width:

2.20″ (55.88 mm)

Depth:

1.90″ (48.26 mm)

Weight (Approximate):

5.99 kg

Miscellaneous

Package Contents:

PDU31101 24-Outlets PDU 2 x Mounting Brackets 6 x (Flat Head M4x5) Bracket Mounting Screws 6 x (M5x12) Rack Mounting Screws/Washers Cord Retention Tray 36 x Cable Ties 6 x (M3x6) Cord Retention Tray Mounting Screws RJ45/DB9 Serial Port Connection Cable Adapter NEMA L5-20R to 5-20P User Manual Registration and Software Download Cards

Additional Information:

Input Frequency : 50/60Hz Meter Readout : Power Control Display Overload Protection (Each Bank) : FIX LED Indicators : Tx/Rx, LINK, Normal/Warning/Critial Status Updateable firmware : Yes, via USB or Ethernet Modular Expandability (Cascading) : Yes, via RJ45 Environmental Sensor : Optional, via RJ45 Multifunction LCD Screen : Voltage, Frequency, Load, Current, HW/FW Version, Network information Enclosure Construction : Steel External Site Ground Pin : Yes Cord Retention Tray/Cord Organizers : Yes Adjustable Mounting Brackets : 1 set Operating Temperature : 32 °F to 140 °F (0 °C to 60 °C) Operating Relative Humidity : 0% – 95% Non-condensing Maximum Operating Elevation : 11,480 ft (3,500 m)

Certifications & Standards:

UL 60950-1 FCC Class A

Country of Origin:

China

TAA Compliant:

No

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

3 Year
