| Product Specifications | |
|---|---|
| Product Type | Rechargeable Sealed Lead Acid Battery |
| Cells Per Unit | 6 Cells |
| Voltage | 12V |
| Capacity | 34W (15-Minute Rate to 1.67V per Cell at 25°C) |
| Weight | Approx. 2.7 kg (5.95 lbs) |
| Maximum Discharge Current | 130A (5 Seconds) |
| Internal Resistance | Approx. 17 mΩ |
| Terminal Type | F2 Faston Tab 250 |
| Container Material | ABS (UL94-HB) |
| Flammability Resistance | UL94-V0 Available Upon Request |
| Operating Temperature Range |
Discharge: -15°C to 50°C (5°F to 122°F) Charge: -15°C to 40°C (5°F to 104°F) Storage: -15°C to 40°C (5°F to 104°F) |
| Nominal Operating Temperature | 25°C ±3°C (77°F ±5°F) |
| Float Charging Voltage | 13.5 to 13.8 VDC per Unit (Average at 25°C) |
| Maximum Charging Current | 3.4A |
| Equalization & Cycle Service Voltage | 14.4 to 15.0 VDC per Unit (Average at 25°C) |
| Self Discharge | Maintains More Than 75% Capacity After 6 Months Storage at 25°C Ambient Temperature |
Sold out

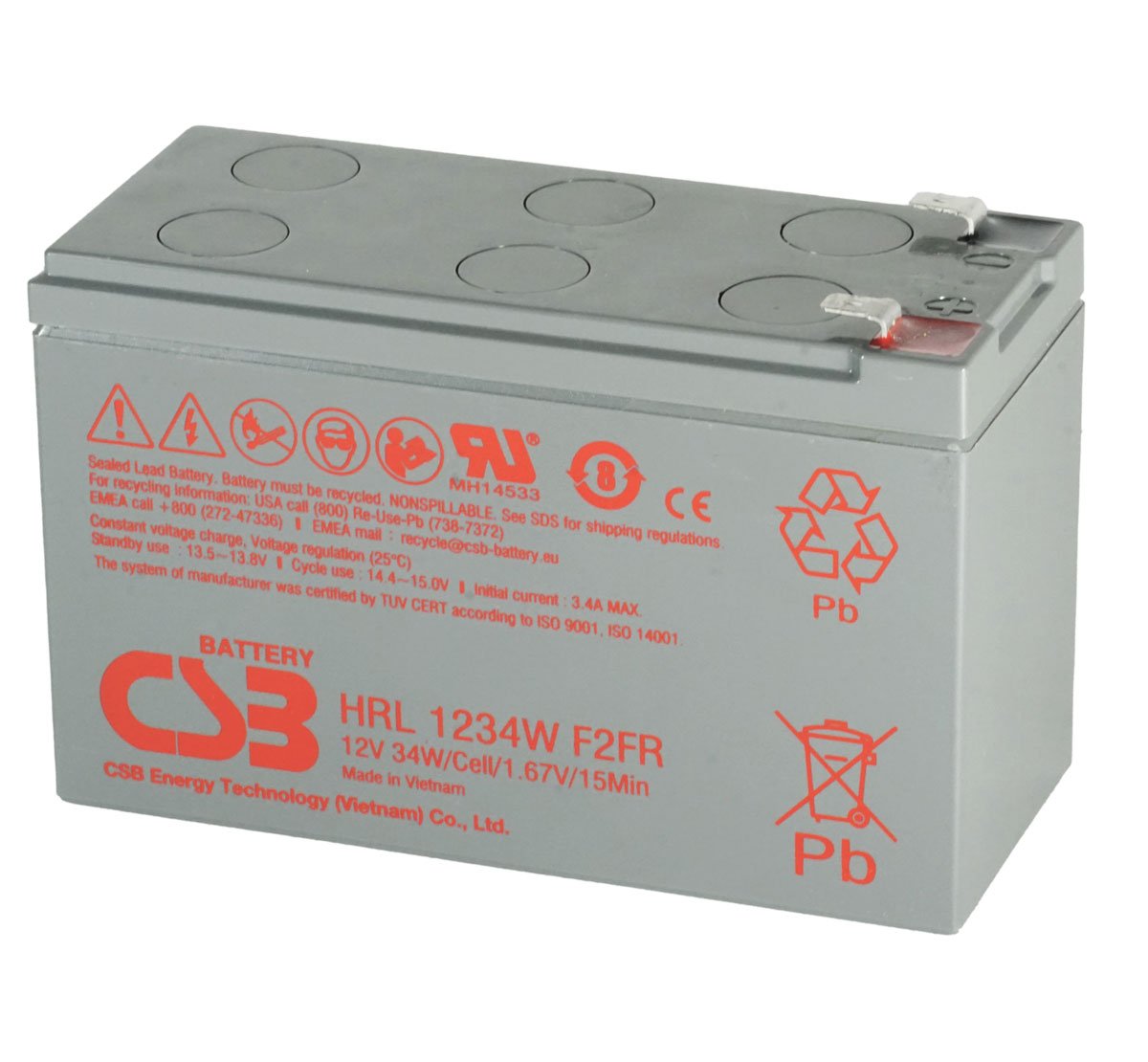

CSB HRL 1234W F2FR 12V 34W (9Ah) High-Rate Flame Retardant SLA AGM Battery – F2 Terminal
Original price was: $110.99.$66.59Current price is: $66.59.
Out of stock
CSB HRL 1234WF2FR – 12V 9AH LEAD SEALED BATTERY
| Weight | 6 lbs |
|---|---|
| Dimensions | 5.91 × 2.52 × 3.86 in |
| Application | High Rate Discharge, Tools |
| Terminal Type | F2 |
| Group Size | |
| Battery Type | SLA / VRLA |
| Part No | HRL1234WF2FR |
| Warranty | 2 Year |
| Cycle Life | 500 cycles @ 50% DOD |
| Voltage | 12 |
| Cold Cranking Amps (CCA) | 85 |
| Cranking Amps (CA) | 105 |
| Capacity (Ah) | 9 |
| Brand |
DATASHEET
