Specification
Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)
Weight Approx. 2.50kg. (5.51lbs.)
Maximum Discharge current 100/130A (5sec.)
Internal Resistance Approx. Approx. 19mΩ
Operating Temperature Range Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 3.4A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
Terminal F2-Faston Tab250
Container Material ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
-40%
RBC51 Replacement Battery 1pc 12V 9Ah HR1234WF2 is a 12 9 SLA / VRLA battery engineered for . Features F2 terminals, dimensions, and nationwide Canadian shipping.
RBC51 Replacement Battery 1pc 12V 9Ah HR1234WF2
Original price was: $98.10.$58.86Current price is: $58.86.
Available on backorder

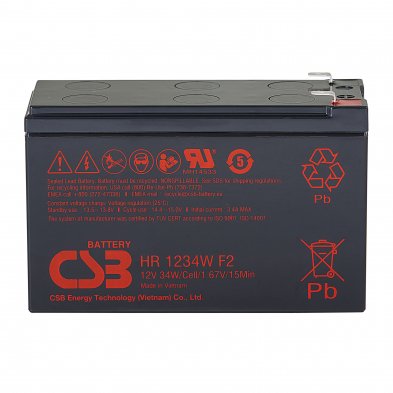

HR1234W
12 V 34.0w/cell
HR 1234W is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used up to 5 yeas in standby service.
| Weight | 6.39 lbs |
|---|---|
| Dimensions | 5.94 × 2.56 × 3.74 in |
| Terminal Type | F2 |
| Compatibility | APC (RBC Replacement Cartridges) |
| APC RBC Replacement | RBC51 |
| Replacement Format | OEM Replacement Cartridge (RBC Pack) |
| Battery Type | SLA / VRLA |
| Part No | HR1234WF2 |
| Warranty | 1 Year |
| Voltage | 12 |
| Reserve Capacity (RC) | 16 |
| Capacity (Ah) | 9 |
| Brand |
