Baleigh 220V 1Phase Plate Roll 5′ Length 14 Gauge Mild Steel Capacity (1006546)

Baleigh 220V 1Phase Plate Roll 5′ Length 14 Gauge Mild Steel Capacity with Hydraulic Motor (1006546) is designed for small to medium metalworking applications. This versatile plate roll features a 5′ working width and can handle 14 gauge mild steel across its entire width.

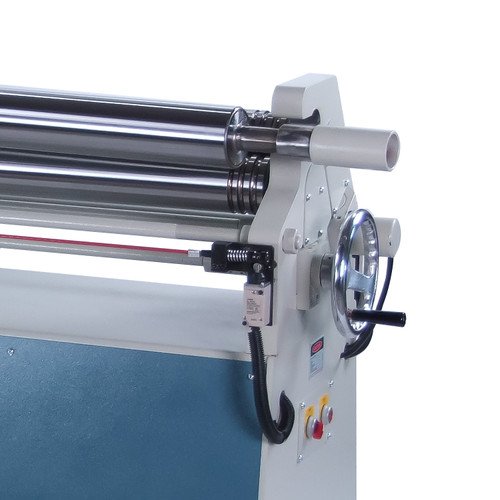

The 1006546 Baleigh 1Phase plate roll includes a second hydraulic motor to control the back roll movement, with a digital readout (DRO) positioned at the head of the machine for easy visibility. Built with a rigid steel frame machined to exacting tolerances, this plate roll prevents deflection and maintains accuracy.

• Specifications and Dimensions
  • Length: 91 in.
  • Width: 33 in.
  • Height: 55 in.
  • Net Weight: 1690 lbs
  • Forming Width: 60″
  • Roll Speed: 6 rpm
  • Upper Roll Dia.: 3.50″
  • Roll Adjustment Back: Hydraulic
  • Minimum Forming Dia: 5.25″
  • Motor: 2 hp
  • Wire Grooves: Yes
  • Capacity (Mild Steel): 14 ga. (.075″)
  • Power: 220V / 1-phase



• Key Features and Benefits
  • 5′ working width for versatile applications
  • 14 gauge mild steel capacity
  • 2 hp 220-volt single-phase motor
  • Hydraulic motor for back roll movement
  • Remote control pedestal with foot pedal controls
  • Digital readout for easy repeatability
  • Rigid steel frame to prevent deflection
  • 1-year parts warranty and lifetime technical support
