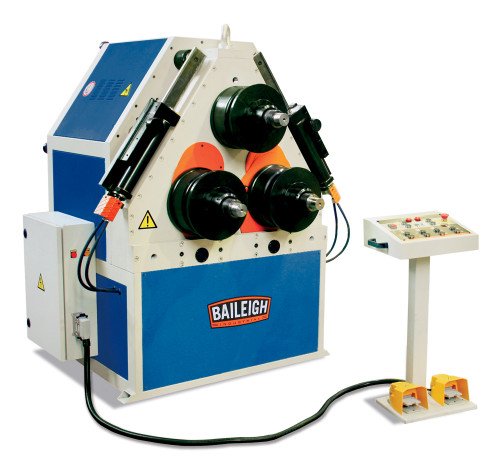

Baileigh 220V 3Phase 60Htz Model R-H120 Hydraulic Double Pinch Roll Bender (1006829)

Baileigh 220V 3Phase 60Htz Model R-H120 Hydraulic Double Pinch Roll Bender (1006829) offers one of the best double-pinch designs on the market for production runs. Built from high-quality components with an electro-welded steel plate framework, this metal ring roller ensures durability and precision.

This hydraulic double pinch roll bender runs on 220-volt 3-phase power and features a maximum capacity of 5.5″ round tube and 4.5” schedule 40 pipe. The double-pinch system includes one fixed top roll and two bottom rolls for forming, all rotated by independent hydraulic cylinders.

• Specifications and Dimensions
  • Length: 67 in.
  • Width: 64 in.
  • Height: 80 in.
  • Net Weight: 5000 lbs
  • Item Number: R-H120
  • Roll Adjustment: Hydraulic
  • Pipe Capacity: Size: 4.5″ (sch. 40) / Min. Dia.:73″
  • Round Tube Capacity: Size: 5.5″ (.120″) / Min. Dia.: 118″
  • Square Tube Capacity: Size: 4″ (.196″) / Min. Dia.: 118″
  • Solid Round Capacity: Size: 2.375″ / Min. Dia.: 40″
  • Flat Bar Easy Way: Size: 7.875″ (1.375″) / Min. Dia.: 40″
  • Flat Bar Hard Way: Size: 4″ (.984″) / Min. Dia.: 63″
  • Angle Iron Capacity: Size: 4″ (.393″) / Min. Dia.: 63″
  • Shaft Diameter: 3.937″
  • Lower Roll Dia.: 12.40″
  • Pinch: Double
  • Digital Readout: Yes
  • Power: 220V / 3-phase



• Key Features and Benefits
  • Heavy-duty steel plate frame for sturdy structure
  • Convenient control podium design for efficient production
  • Double-pinch rolling minimizes material waste
  • Hydraulically-driven lateral roll guides for precise coiling
  • Movable operator console with foot pedals for easy control
  • Lifetime technical support by phone from Baileigh’s experienced team
