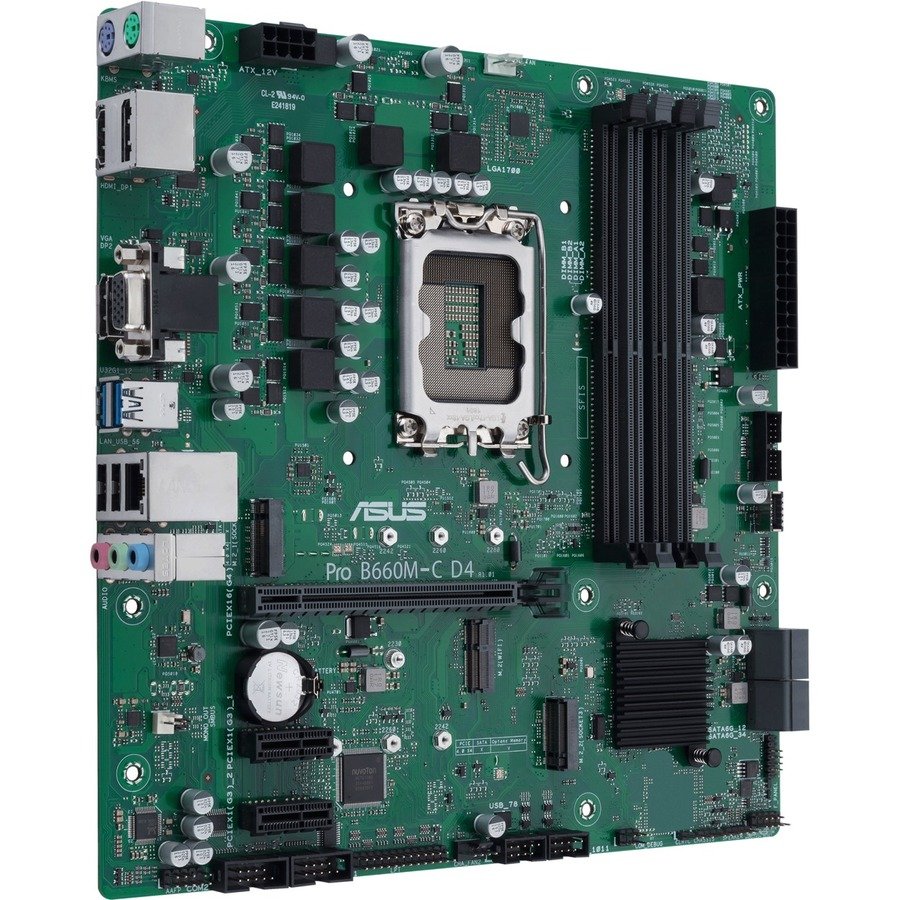

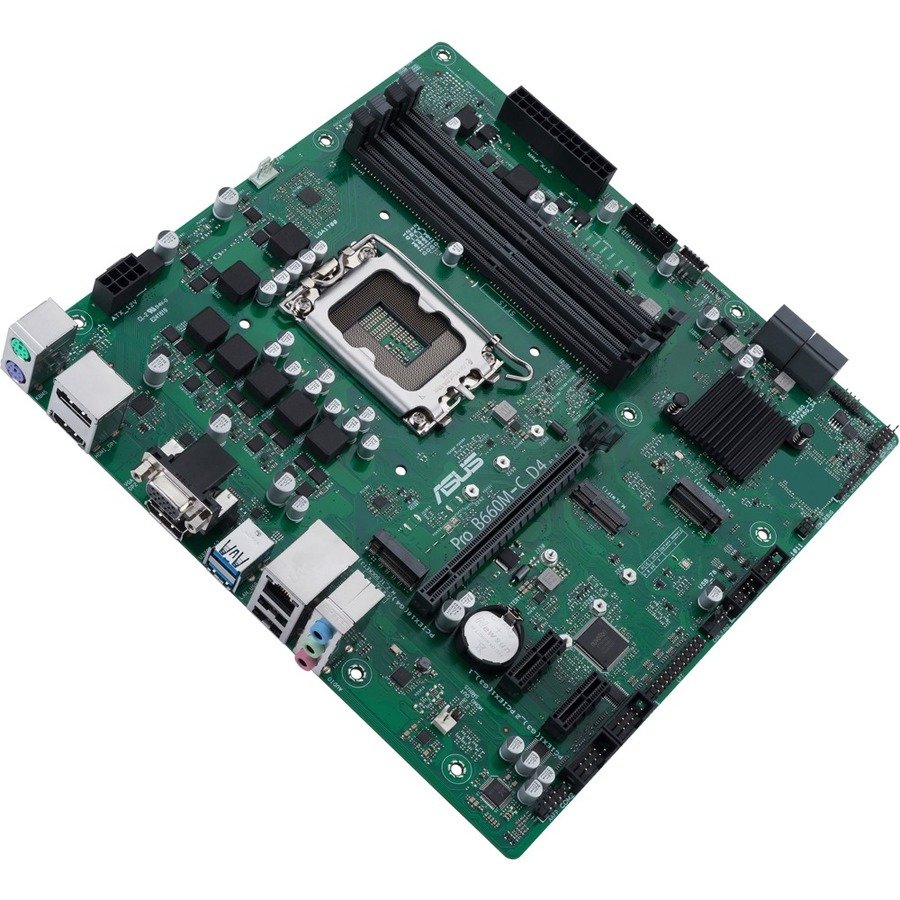

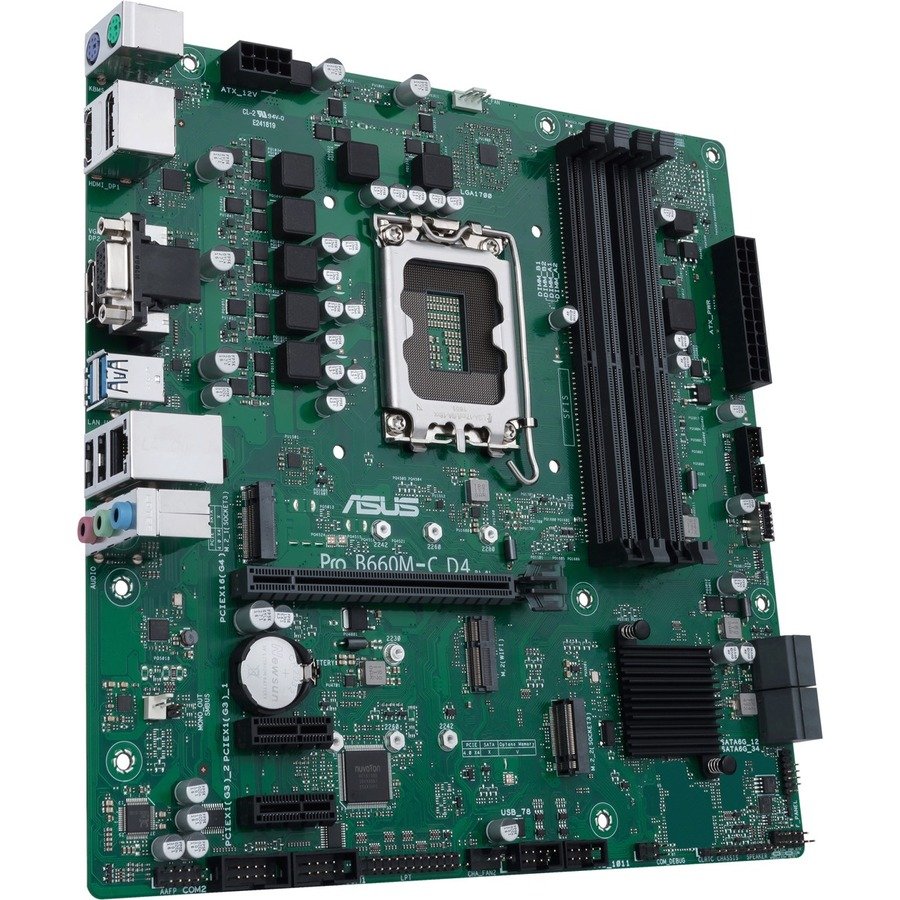

Asus B660M-C D4-CSM Desktop Motherboard – Intel B660 Chipset – Socket LGA-1700 – Intel Optane Memory Ready – Micro ATX

Asus B660M-C D4-CSM Desktop Motherboard – Intel B660 Chipset – Socket LGA-1700 – Intel Optane Memory Ready – Micro ATX
Asus H610T D4-CSM Desktop Motherboard – Intel H610 Chipset – Socket LGA-1700 – Intel Optane Memory Ready – Mini ITX

Pentium Gold, Celeron, Core Processor Supported – 64 GB DDR4 SDRAM Maximum RAM – SoDIMM – 2 x Memory Slots – Gigabit Ethernet – HDMI – DisplayPort – 2 x SATA Interfaces

Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency. Intel? LGA 1700 socket: Ready for 12th Gen Intel? processors ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes PRO

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

General Information

Manufacturer:

ASUS Computer International

Manufacturer Part Number:

PRO H610T D4-CSM

Manufacturer Website Address:

http://www.asus.com

Brand Name:

Asus

Product Series:

PRO

Product Model:

H610T D4-CSM

Product Name:

PRO H610T D4-CSM Desktop Motherboard

Marketing Information:

Product Type:

Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:

Intel

Chipset Model:

H610

Total Processor Supported:

1

Processor Socket:

Socket LGA-1700

Processor Generation Supported:

12th Gen

Processor Supported:

Pentium GoldCeleronCore

Memory

Number of Memory Slots:

2

Memory Form Factor:

SoDIMM

Maximum Memory Supported:

64 GB

Memory Technology:

DDR4 SDRAM

Memory Speed Supported:

3000 MHz2933 MHz2800 MHz2666 MHz2400 MHz2133 MHz3200 MHz

Intel Optane Memory Ready:

Yes

I/O Controller

Controller Type:

Serial ATA/600

Intel RST:

Yes

Video

Onboard Video:

CPU Dependent Video

Audio

Audio Channels:

7.1

Network & Communication

Gigabit Ethernet:

Yes

Interfaces/Ports

Total Number of USB Ports:

4

Number of USB 2.0 Ports:

2

Number of USB 3.2 Ports:

2

HDMI:

Yes

DisplayPort:

Yes

Number of Network (RJ-45) Ports:

1

Onboard Interfaces

Number of SATA Interfaces:

2

Number of M.2 Interfaces:

1

Total Number of Onboard USB Ports:

7

Number of Onboard USB 2.0 Ports:

2

Number of Onboard USB 3.2 Ports:

5

Physical Characteristics

Form Factor:

Mini ITX

Width:

6.69″ (170 mm)

Depth:

6.69″ (170 mm)

Miscellaneous

Brand Compatibility:

Intel

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
