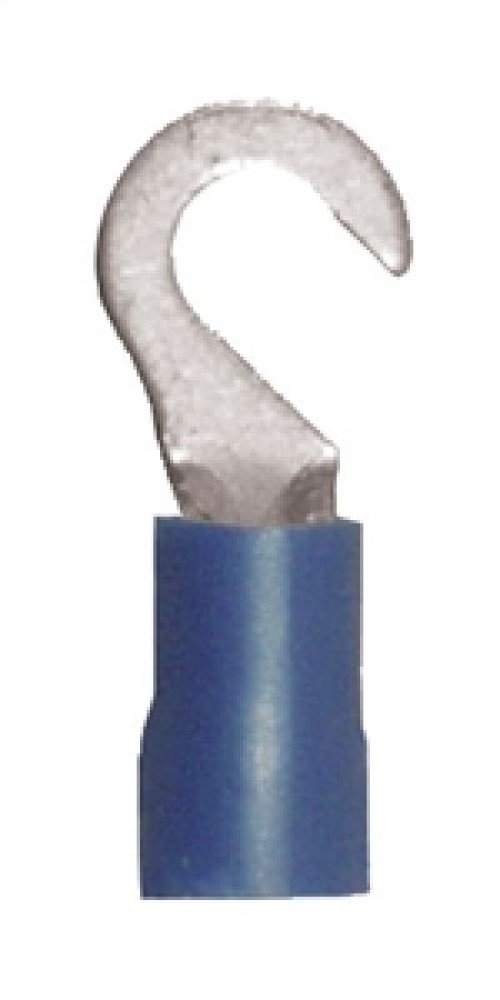

Specification Details
| Parts per Unit | 10, 100, 1000, 25 |
|---|---|
| Features | For general purpose applications, Ridged PVC sleeves for improved abrasion resistance, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength |
| Application | Not branded |
| Gauge | 14, 16 |
| Insulation Color | Blue |
| Insulation Material | PVC |
| Maximum Voltage | 600 V |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | No |
| Stud/Tab Size | #10 |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | No |
| Works With | Primary Wire |
| Brand | Not branded |
| Color | Blue |
| Product Length | 0.86 in |
| Product Width | 0.37 in |
| RoHS Compliant | Yes |
| SKU | 160240, 160240-025, 160240-100, 160240-1000, 160240-2010, 160240-2100 |
| Product Height | 0.18 in |
| Product Weight | 0.002 lb |
| Country of Origin | Taiwan |
