Specification
Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)
Weight Approx. 2.50kg. (5.51lbs.)
Maximum Discharge current 100/130A (5sec.)
Internal Resistance Approx. Approx. 19mΩ
Operating Temperature Range Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 3.4A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
Terminal F2-Faston Tab250
Container Material ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
-40%
RBC54 Replacement Kit 4pcs 12V 9Ah HR1234WF2w/ terminal cover is a 12 9 Sealed Lead Acid (SLA / VRLA) battery engineered for . Features F2 terminals, dimensions, and nationwide Canadian shipping.

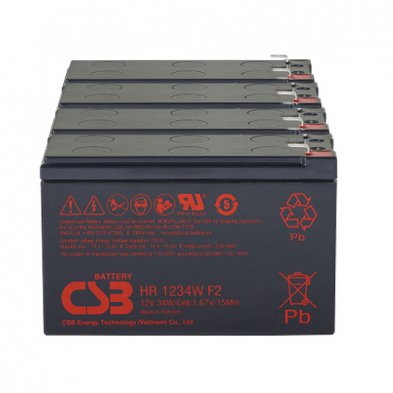

RBC54 Replacement Kit 4pcs 12V 9Ah HR1234WF2w/ terminal cover
Original price was: $354.85.$212.91Current price is: $212.91.
Available on backorder
HR1234W
12 V 34.0w/cell
HR 1234W is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used up to 5 yeas in standby service.
| Weight | 26.56 lbs |
|---|---|
| Dimensions | 5.94 × 5.12 × 7.48 in |
| Terminal Type | |
| Compatibility | |
| APC RBC Replacement | |
| Replacement Format | |
| Battery Type | |
| Part No | |
| Warranty | |
| Voltage | |
| Reserve Capacity (RC) | |
| Capacity (Ah) | |
| Brand |
