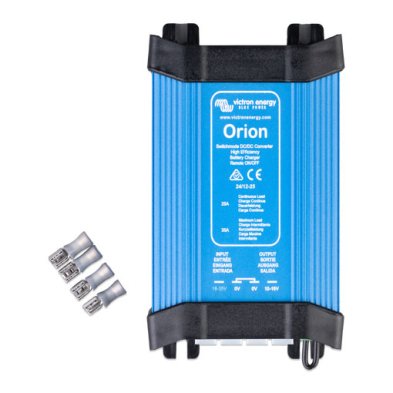

Victron Orion 24/12-25A DC-DC Converter IP20 (ORI241225020)
The Victron Orion 24/12-25A DC-DC Converter IP20 is designed to efficiently convert
24V DC input to 12V DC output with a maximum output current of 25A.
It features a remote on/off connector that eliminates the need for a high-current
switch in the input wiring.
The remote on/off function can be controlled using a low-power switch or the
engine run/stop switch. Models with adjustable output can also be used as battery
chargers, making them ideal for charging a 12V starter or accessory battery
within a 24V electrical system.
Key Features
- 24V to 12V DC conversion
- 25A output current capacity
- Remote on/off connector
- Can be used as a battery charger (adjustable output models)
- Suitable for charging 12V batteries in 24V systems
- Compact and lightweight design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Victron Energy |
| Model Number | ORI241225020 |
| Product Name | Orion 24/12-25A DC-DC Converter IP20 |
| Output Current | 25A |
| Input Voltage | 24V DC |
| Output Voltage | 12V DC |
| Height | 65 mm (2.6″) |
| Width | 88 mm (3.5″) |
| Weight | 0.7 kg |
| Warranty | 60 Months |
| Remote On/Off | Yes |
| Protection Rating | IP20 |
