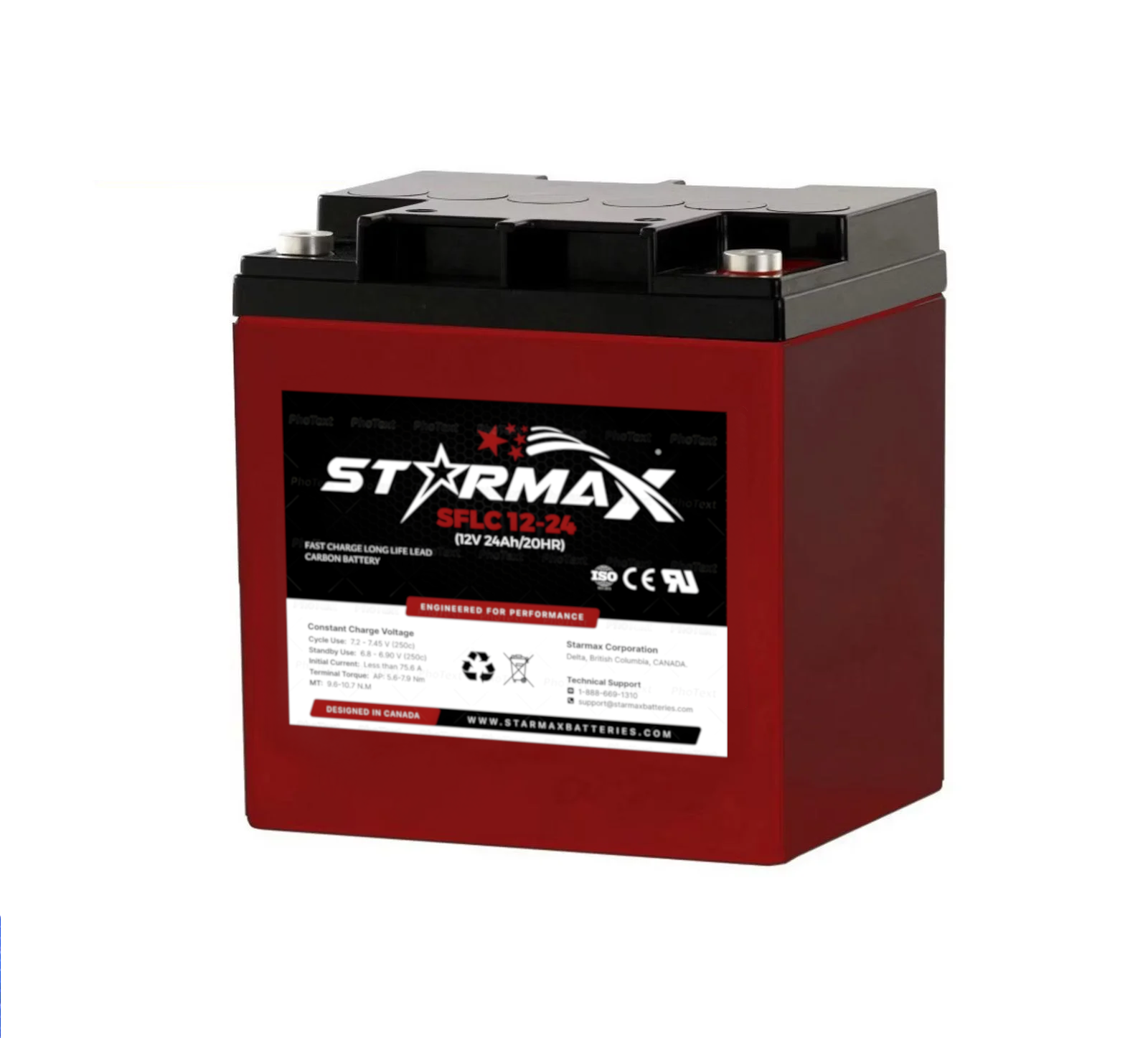

The Starmax SFLC Fast-Charge Long-Life Lead Carbon Battery is a high-performance deep cycle lead carbon battery ideal for solar power systems, off-grid energy storage, wind power applications, sweepers, golf carts, and light industrial electric vehicles. Built for extreme temperatures (-20°C to 60°C), it features low self-discharge, over 3,000 cycles at 50% DOD, and a float service life of ≥20 years. ISO 9001/14001/18001 and CE/IEC certified, this lead carbon battery delivers reliable, long-lasting power for industrial and renewable energy applications.
| Specification | Details |
|---|---|
| Model | Starmax SFLC12‑24 |
| Battery Type | Valve Regulated Lead Carbon (VRLA), Sealed, Maintenance‑Free |
| Nominal Voltage | 12 V (6 cells) |
| Nominal Capacity | 24 Ah @ 20 hr rate (10.50 V) |
| Capacity @ 25 °C |
|
| Design Floating Life @ 25 °C | ~20 Years |
| Internal Resistance (Fully Charged) | ≤ 13.0 mΩ |
| Maximum Discharge Current | ≈ 240 A (5 s) |
| Self‑Discharge Rate | ~3 % per month @ 25 °C |
| Operating Temperature Range |
|
| Charge Voltage & Current (25 °C) |
|
| Dimensions (L×W×H) | ~165 × 126 × 174 mm (Total Height ~174 mm) |
| Approx. Weight | ~8.6 kg |
| Case Material | ABS (optional flame‑resistant UL94‑V0) |
| Terminal Type | M6 Copper Insert (or equivalent) |
| Certifications (typical) | ISO9001, CE, IEC60896‑21/22, IEC61427 (varies by vendor) |
| Typical Applications |
|
