Specification Details
| Parts per Unit | 10, 50 |
|---|---|
| Features | Conforms to TMC Recommended Practice RO104A, American Trucking Association, for closed eyelet terminals with anti-rotation feature (6200 and 6500 series), Exceeds SAE conductivity standards J163 and J1811, Excellent for commercial and industrial applications, Heavy wall copper lugs are 80% thicker than standard lugs, Made in USA, Made of 100% copper, tin-plated for added conductivity and to resist corrosion, Wider and thicker pads for greater strength and conductivity |
| Application | Commercial, Industrial |
| Gauge | 1, 2 |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | J163, J1811 |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| UL / CSA | Yes |
| Brand | MagnaLug |
| Color | Silver |
| Product Length | 2.00 in |
| Product Width | 0.55 in |

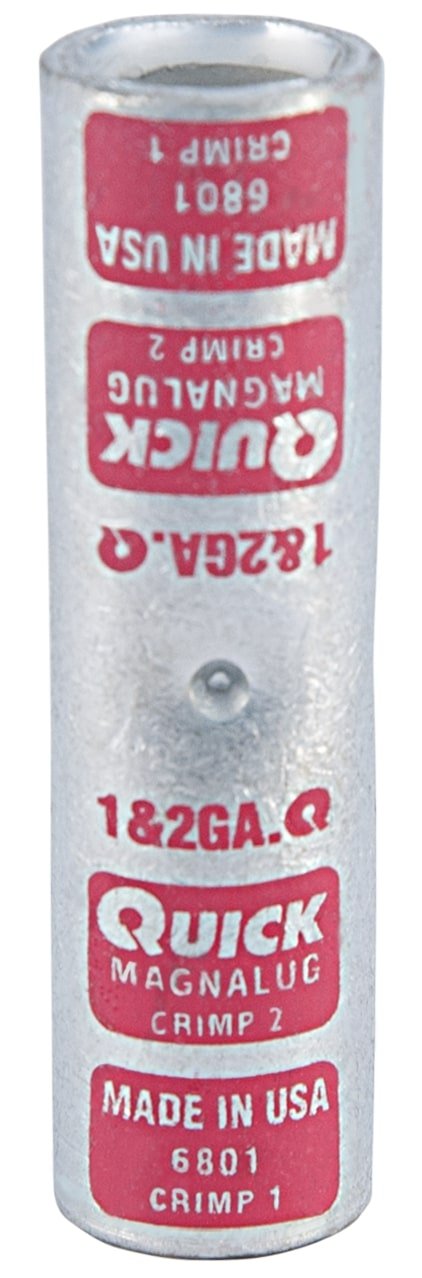

| Product Type | Copper Lug Butt Splice |
| RoHS Compliant | Yes |
| SKU | 6801, 6801-010, 6801-050 |
| Product Height | 0.55 in |
| Product Weight | 0.14 lb |
| Works With | Copper Wire |
| Tristrip Statement | Strip .75″ (19mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 19 mm (0.75 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
