Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Exceeds SAE conductivity standards J163 and J1811, Excellent for commercial and industrial applications, Heavy wall copper lugs are 80% thicker than standard lugs, Heavy Wall Copper Tube Lugs, Locking, Anti Rotating Lug, Made in USA, Made of 100% copper, tin-plated for added conductivity and to resist corrosion, Wider and thicker pads for greater strength and conductivity |
| Application | General wiring as well as starter or ground connections |
| Gauge | 3/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | J163, J1811 |
| Stud Hole Size | 3/8 in |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | Yes |
| Works With | Side Posts |
| Brand | MagnaLug |
| Color | Silver |
| Product Length | 2.40 in |
| Product Width | 1.05 in |

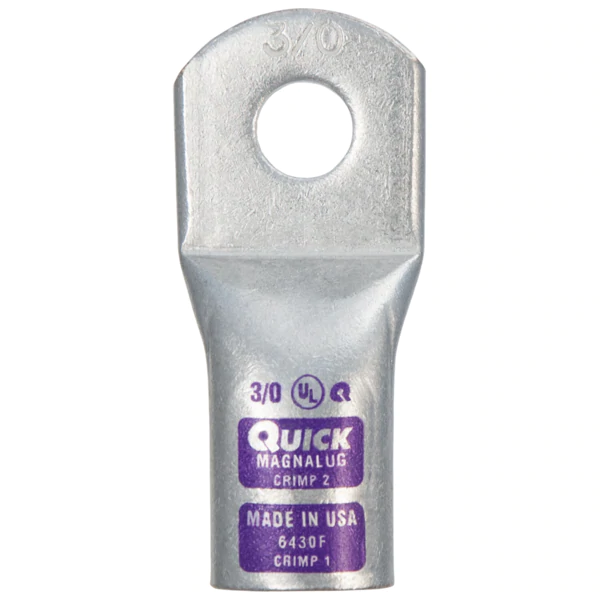

| Product Type | Straight lug |
| Production Process | Formed |
| RoHS Compliant | Yes |
| SKU | 6430-005F, 6430-050F, 6430F |
| Product Height | 0.74 in |
| Product Weight | 0.14 lb |
| Tristrip Statement | Strip .98″ (25mm) minimum of insulation from ind, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 25 mm (0.98 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
