-20%

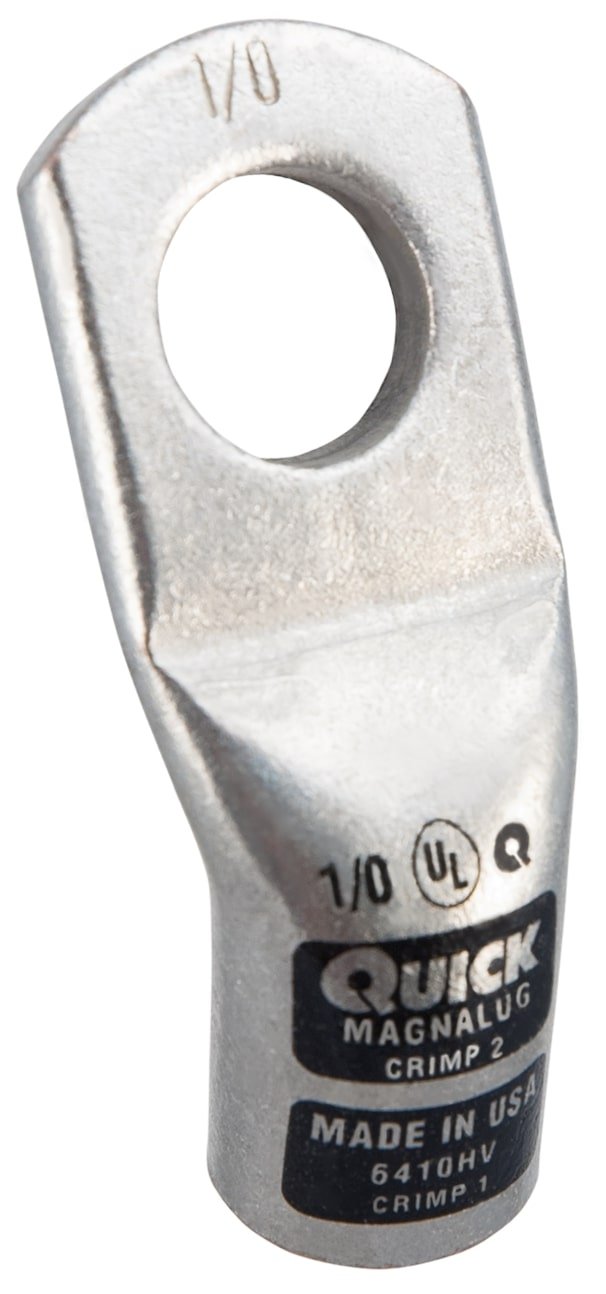

QuickCable 6410-050HV 1/0 1/2 MAGNA LUG 45 –50 Pack
Original price was: $492.78.$394.23Current price is: $394.23.
In stock
Special Order | Bulk Orders Only | MOQ Applies
Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Exceeds SAE conductivity standards J163 and J1811, Excellent for commercial and industrial applications, Heavy wall copper lugs are 80% thicker than standard lugs, Heavy Wall Copper Tube Lugs, Made in USA, Made of 100% copper, tin-plated for added conductivity and to resist corrosion, Wider and thicker pads for greater strength and conductivity |
| SKU | 6410-005HV, 6410-050HV, 6410&HV |
| Application | Commercial and Industrial Applications |
| Gauge | 1/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | J163, J1811 |
| Stud Hole Size | 1/2 in |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| UL / CSA | Yes |
| Termination Method | Crimp |
| Wall Thickness | Heavy Wall |
| Works With | Side Posts |
| Brand | MagnaLug |
| Color | Silver |
| Color Code | Black |
| Product Length | 1.23 in |
| Product Width | 0.18 in |
| Production Process | Formed |
| RoHS Compliant | Yes |
| Product Height | 0.86 in |
| Product Weight | 0.09 lb |
| Tristrip Statement | Strip .75″ (19mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 19 mm (0.75 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
| Weight | 0.09 lbs |
|---|---|
| Dimensions | 4 × 2 × 0.5 in |
| Wire Gauge | |
| Cable Length | |
| Cable Type | |
| Insulation Type | |
| Terminal Type | |
| Terminal Size | |
| Termination Style | |
| Application | |
| Certifications | |
| Brand |
