Specification Details
| Parts per Unit | 1, 10, 50 |
|---|---|
| Features | Flared barrels for easy installation on cables, Seamless 100% copper tube construction, Standard Wall Tin Plated Copper Tube Lugs, Tin plated for corrosion protection |
| Application | General wiring as well as starter or ground connections |
| Gauge | 6 |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | No |
| Stud Hole Size | 5/16 in |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | Yes |
| Works With | Side Posts |
| Brand | Max |
| Color | Silver |
| Product Length | 1.47 in |
| Product Width | 0.54 in |

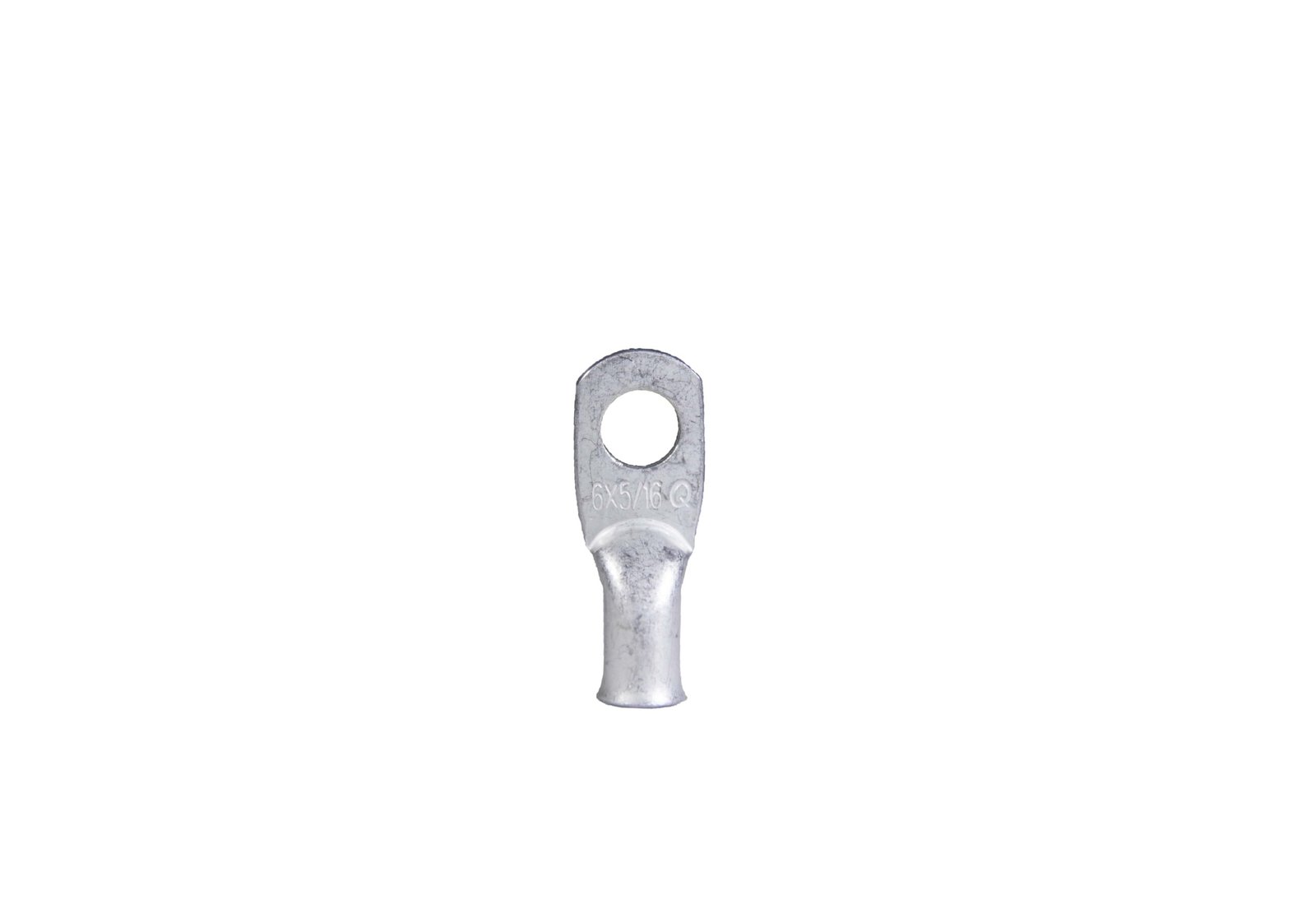

| Product Type | Straight lug |
| RoHS Compliant | Yes |
| SKU | 5951-010E, 5951-050E, 5951-2001E, 5951E |
| Product Height | 0.39 in |
| Product Weight | 0.02 lb |
| Tristrip Statement | Strip .55″ (14mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 14 mm (0.55 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | China |
