Specification Details
| Parts per Unit | 1, 10 |
|---|---|

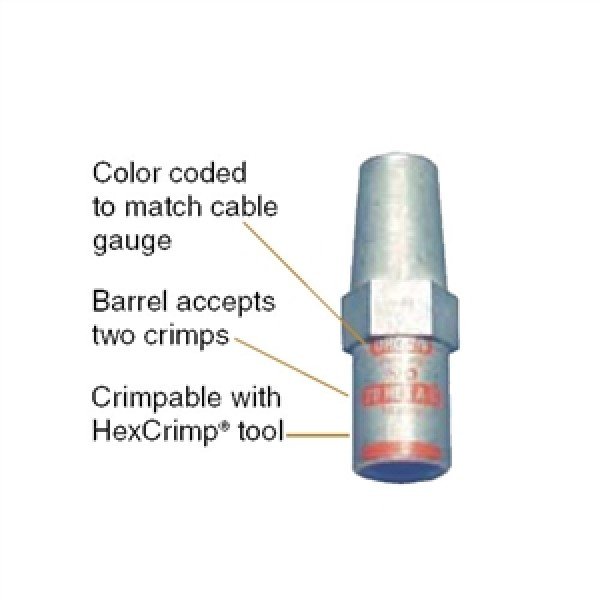

| Features | 100% copper alloy tin-plated for corrosion resistance, Barrel accepts two crimps, Color-coded to match cable gauge, Crimp with HexCrimp tool or solderable, Fasteners sold separately |
| Application | Material Handeling |
| Gauge | 3/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| SAE | No |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | No |
| Works With | Leadheads |
| Brand | Not branded |
| Color | Silver |
| Color Code | Purple |
| Product Length | 2.19 in |
| Product Width | 0.75 in |
| Product Type | Thimble |
| RoHS Compliant | Yes |
| SKU | 214909, 214909-001, 214909-010 |
| Product Height | 0.75 in |
| Product Weight | 0.13 lb |
| Tristrip Statement | Strip .91″ (23mm) minimum of insulation from end, fully insert in connector & crimp at both locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 23 mm (.91 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
