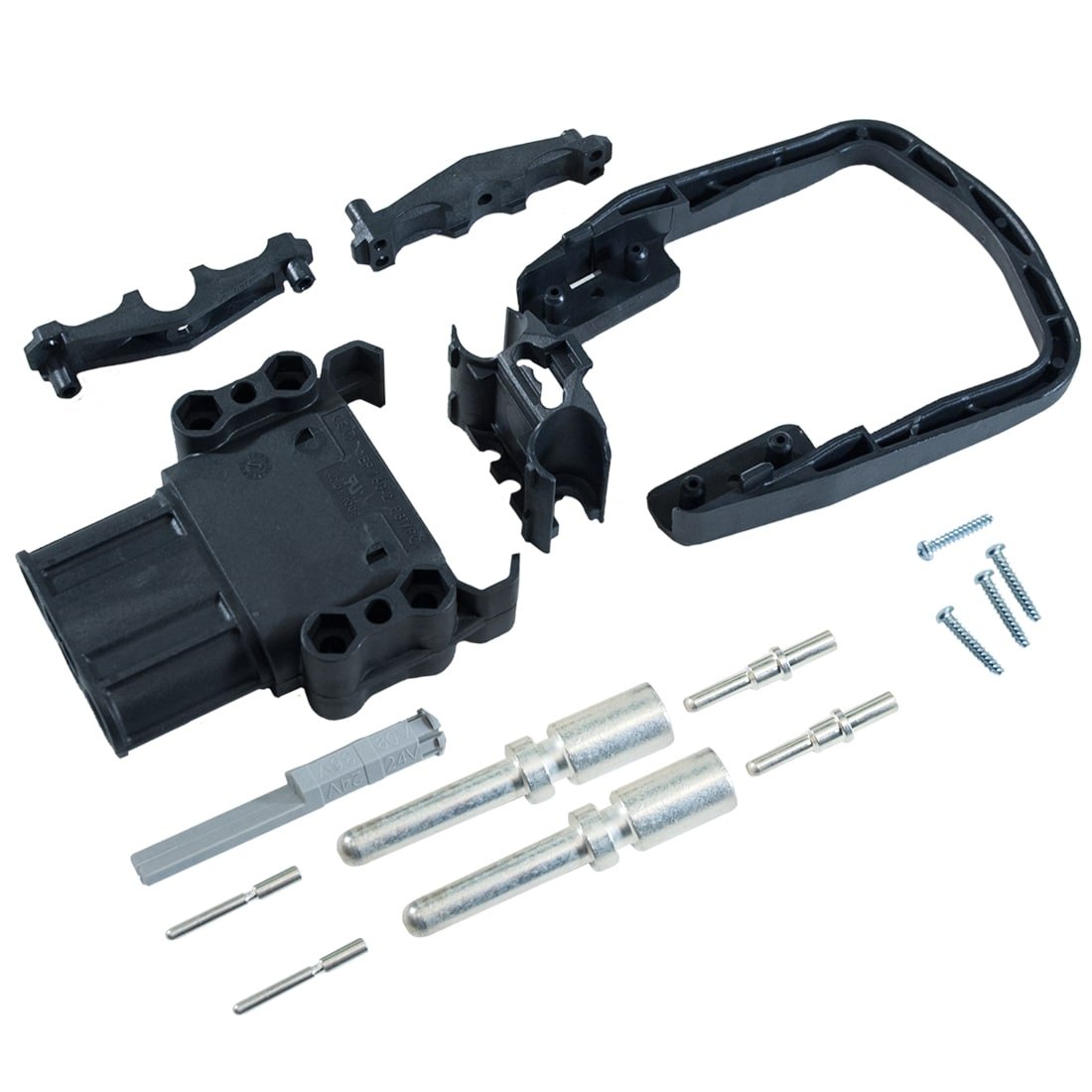

QuickCable 127514-001 160 AMP 4 GA EURO DIN KIT MALE –1 Pack
Original price was: $194.43.$155.54Current price is: $155.54.
In stock
Special Order | Bulk Orders Only | MOQ Applies
Specification Details
| Parts per Unit | 1 |
|---|---|
| Features | DIN Connectors conform to specification DIN43589-1 except the cable barrel fits American Wire Gauge (AWG) cable instead of metric cable, Hexagon voltage key for 24, 365, 48, 72, 80, and 96 volt systems, Ideal for North American fast charging systems because DIN connectors have greater current carrying capacity compared with standard SB® connectors, In addition to two large round contacts, up to four auxiliary contacts can be used for battery monitoring and charger applications, Kits include connectors, housing, and auxiliaries (two 14/18 upper and two 14/18 lower auxiliaries) |
| Amps | 160 |
| Application | Industrial |
| Includes | Handle |
| Gauge | 4 |
| Pack Type | Bag |
| SAE | No |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -20 to 105°C |
| Temperature Range (°F) | -4 to 221°F |
| UL / CSA | No |
| Works With | DIN |
| Brand | Not branded |
| Color | Black |
| Product Length | 2.25 in |
| Product Width | 2.80 in |
| Product Type | Male 160 Amp Connector Kit |
| RoHS Compliant | Yes |
| SKU | 127514, 127514-001 |
| Product Height | 2.50 in |
| Product Weight | 0.82 lb |
| Country of Origin | USA |
| Weight | 0.82 lbs |
|---|---|
| Dimensions | 3 × 2 × 0.5 in |
| Wire Gauge | |
| Cable Length | |
| Cable Type | |
| Termination Style | |
| Application | Automotive, Backup Power / UPS, Heavy Equipment, Industrial, Marine, Solar / Renewable |
| Voltage Rating | |
| Brand |
