-20%

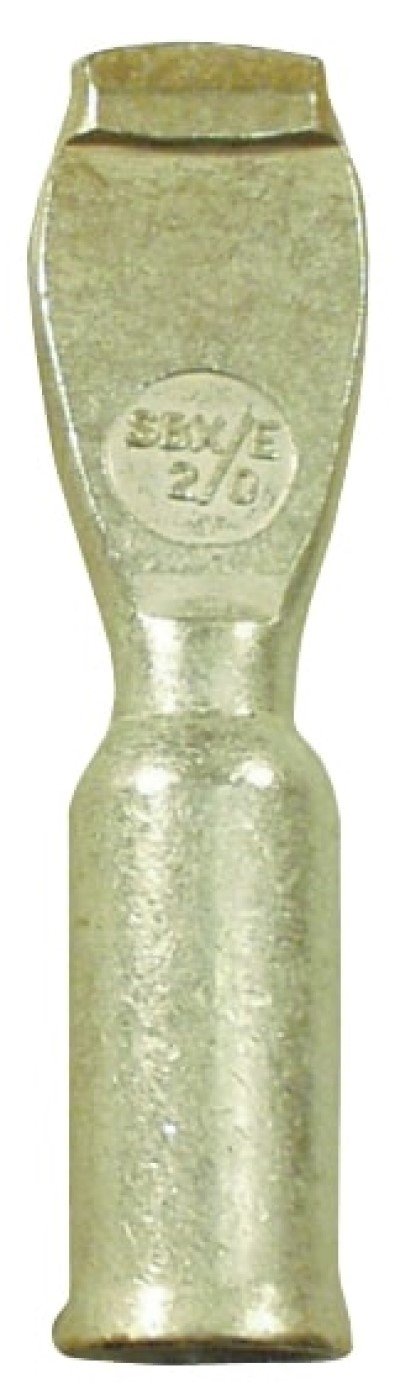

QuickCable 123208-010 2/0 SBX CONTACT 350 AMP –10 Pack
Original price was: $239.05.$191.24Current price is: $191.24.
In stock
Special Order | Bulk Orders Only | MOQ Applies
Specification Details
| Parts per Unit | 10, 50 |
|---|---|
| Features | European SBX® blade-type connector with a cable barrel that fits American Wire Gauge (AWG) cable instead of metric wire, Ideal for North American fast charging systems because, in addition to large blade contacts, two auxiliary contacts can be used for battery monitoring and charger communications, SBX® housings are genderless, reducing the number of stocked parts, SBX®s have a single-piece housing that requires no assembly, saving time |
| Amps | 350 A |
| Application | General Commercial and Industrial Applications |
| Gauge | 2/0 |
| Maximum Voltage | 600 V |
| Pack Type | Bag |
| Plating Material | Silver |
| SAE | No |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -20 to 105°C |
| Temperature Range (°F) | -4 to 221°F |
| Termination Material | Silver Plated Copper |
| Termination Method | Crimp |
| UL / CSA | No |
| Works With | SBX |
| Brand | SBX |
| Color | Silver |
| Product Length | 3.10 in |
| Product Width | 0.49 in |
| Product Type | Contact |
| RoHS Compliant | Yes |
| SKU | 123208-010, 123208-050, 123208A |
| Product Height | 0.49 in |
| Product Weight | 0.01 lb |
| Tristrip Statement | Strip .83″ (21mm) minimum of insulation from end, fully insert in connector & crimp at both locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 21 mm (.83 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
| Weight | 0.01 lbs |
|---|---|
| Dimensions | 3 × 2 × 0.5 in |
| Wire Gauge | |
| Application | Automotive, Backup Power / UPS, Heavy Equipment, Industrial, Marine, RV / Camper, Solar / Renewable |
| Voltage Rating | |
| Brand |
