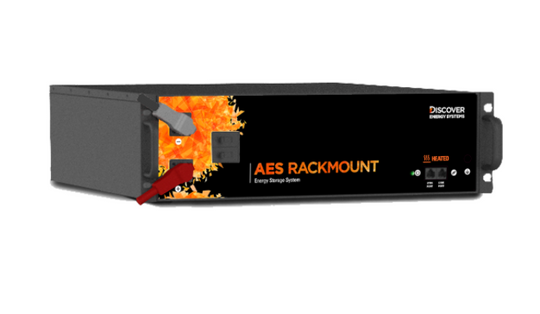

Discover Energy – 48-48-5120-H, 48V 100Ah AES Rackmount Lithium battery Heated
SKU: 48-48-5120-H
AES RACKMOUNT is the rapid install energy storage system designed for Residential Off-Grid Solar and Whole-Home Backup Power. The battery features a high-current GEN-4 BMS that delivers superior peak power for demanding load support, 1C charge/discharge rates and self-heating allowing for cold charge functionality. Easy configuration, UL1973 and UL9540-BESS enable seamless permitting throughout North America. An industry-leading 10-year warranty and energy throughput performance guarantee delivers a strong ROI.
MECHANICAL SPECIFICATIONS
| Industry Reference | 19 Inch Rackmount 3U |
| Length A (in/mm) | 19.6 | 497.3 |
| Width B (in/mm) | 17.3 | 439.2 |
| Height C (in/mm) | 5.3 | 133.5 |
| Total Height D (in/mm) | 5.3 | 133.5 |
| Weight (lbs/kgs) | 97 | 44 |
| Terminal * | Amphenol SurLok Plus |
| Cell(s) | 16S1P |
| Case Material | Galvanized Steel Sheet |
| IP Rating | 20 |
| Electrolyte | LiFePO4 |
ELECTRICAL SPECIFICATIONS
| Open Circuit Voltage (V) | 51.2 |
| Charge Voltage (Bulk Vdc) | 55.2 |
| Max Absorption Voltage (U1 Vdc) | 55.2 |
| Float Voltage (U2 Vdc) | 53.6 |
| Suggested Low Voltage Cutoff (Vdc) | 48 |
| Max Continuous Charge Current – 1 Hour | 95 A |
| Max. Continuous Charge Current (I Max. Adc) | 70 A |
| Min. Finishing Charge Current (I Min. Adc) | 2.5 A |
| Max Continuous Discharge Current – 1 Hour | 95 A |
| Max Continuous Discharge Current (Adc) | 70 A |
| Max Peak Current (Adc) | 218 A RMS |
| Self-Discharge (25°C / 77°F) | < 3% per month |
| Charge Temperature | Min: 4°C (39.2°F) | Max: 52°C (125.6°F) |
| Discharge Temperature | Min: -17°C (1.4°F) | Max: 52°C (125.6°F) |
| Storage Temperature | Min: -20°C (-4°F) | Max: 55°C (131°F) |
PERFORMANCE SPECIFICATIONS
| Nominal Energy (kWh) | 5.12 |
| Usable DoD | 100% |
| Rated Wh Capacity (1C) | 5120 |
| Rated Ah Capacity (1C) | 100 |
spec sheet: 48-48-5120-H
