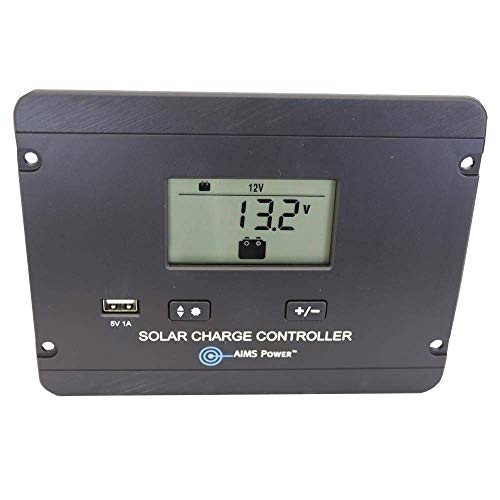

AIMS Power Flush Mount 30 Amp Charge Controller PWM 12/24V is an efficient and compact charge controller designed for both 12V and 24V battery systems. This charge controller features a flush mount design, making it ideal for installations in tight spaces. It is equipped with the latest PWM charging technology, ensuring optimal battery performance and longer lifespan by adjusting the charging process based on battery voltage. This charge controller is compatible with lithium, Gel, AGM, sealed lead-acid, and flooded batteries. The conformal coating makes it ideal for marine and harsh environments, providing reliable performance in outdoor conditions. The included LCD display shows essential information like battery voltage, solar panel voltage, charging current, and battery status. With various protections and efficient cooling, this charge controller is a reliable choice for solar power systems.
Key Features & Specifications:
- Design: Flush mount, compact and efficient for small spaces
- Voltage Compatibility: Works with 12V and 24V systems
- Compatible Battery Types: Lithium, Gel, AGM, Sealed Lead-Acid, Flooded
- Charging Technology: PWM (Pulse Width Modulation) for efficient charging
- Battery Charge Stages: Boost, Float, and Equalize
- LCD Display: Shows battery voltage, solar panel voltage, charging current, and battery status
- PV Input: 12V – 360W, 24V – 720W
- Max Battery Current: 30A
- Max PV Open Circuit Voltage: 55V
- Efficiency: 97%
- Protection Features: Overload, short circuit, high voltage, high temperature, low voltage, auto-correction
- Cooling: Optimal heatsink cooling, IP32 enclosure, non-condensing humidity
- Temperature Range: -35°C to 45°C (-31°F to 113°F)
- Dimensions: 5.125” W x 3.5” L x 0.75” H
- Weight: 0.5 lbs (unit weight), 1 lb (boxed)
- Warranty: 2-year warranty
