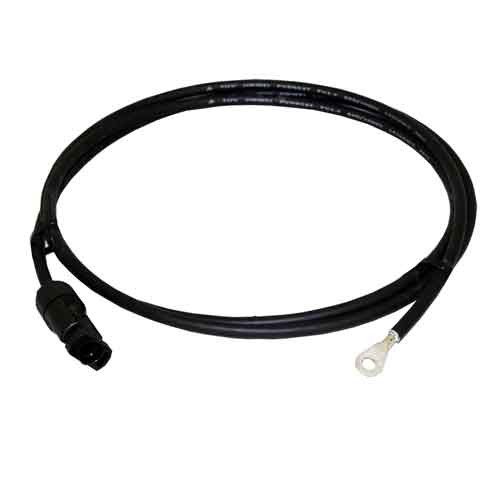

AIMS Power 10 AWG PV Wire Female MC4 to Lug End (PVFL50FT10AWG) is an essential extension cable for solar power systems, providing reliable connections from solar panels to inverters or other electrical components. This 50ft cable features a female MC4 connector at one end and a lug end at the other, offering versatility for installation in a wide range of solar setups. It is designed with high-quality materials and features tinned copper conductors for enhanced durability and corrosion resistance. This cable is UL-certified and RoHS-compliant, meeting all necessary safety and environmental standards for your solar energy needs. Additionally, the moisture-curable cross-linked insulation provides superior protection against UV, water, ozone, fluids, oil, salt, and general weathering. The flame retardant construction ensures safe and reliable operation, even in demanding environments. Compatible with all popular connectors, this extension cable is a durable, efficient solution for enhancing your solar system.
Specifications:
Voltage Rating: 600 V
Conductor Type: Tinned Copper
Cable Length: 50 feet
Wire Gauge: 10 AWG
Connector Type: Female MC4 to Lug End
Temperature Rating: 90 °C (194 °F) dry or wet
Ambient Temperature Range: -40 °C to +90 °C (-40 °F to +194 °F)
Max Short Circuit Temperature: 250 °C (482 °F)
Bending Radius: ≥ 5 × outer diameter
Structure: 75/0.30 TC
Conductor ID: 3 mm
XLPE Insulation Thickness: 0.72 mm
Jacket Outer Diameter: 6.4 mm
Weight (per 100ft): 5.6 lbs
Allowable Current: 49.6 A
Conductor Resistance: 3.59 Ω/km
UL Certification: UL4703
