| Product Overview | |
|---|---|
| Model | VTL12-200CW |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Cold Weather Capability | Discharge down to -20°C, Recharge down to -30°C (Internal Heating Film) |
| Battery Management System | Upgraded BMS for Maximum Discharge & Recharge Performance |
| Electrical Specifications | |
| Nominal Voltage | 12V |
| Nominal Capacity | 200Ah |
| Energy | 2560Wh |
| Cycle Life | >3000 Cycles to 80% Capacity |
| Charge Voltage | 14.6V |
| Float Voltage | 13.8V |
| Maximum Discharge Current | 200A |
| Peak Discharge Current | 350A (3 Seconds) |
| Maximum Charge Current | 150A |
| Applications | |
| Electric Vehicles, Electric Mobility, Solar & Wind Systems, Fish Finders & Trolling Motors, UPS & Backup Power, Telecommunication Systems, Medical Equipment | |
| Physical Dimensions | |
| Length | 552 mm / 21.7 in |
| Width | 241 mm / 9.5 in |
| Height | 222 mm / 8.7 in |
| Weight | 25 kg / 55.1 lbs |

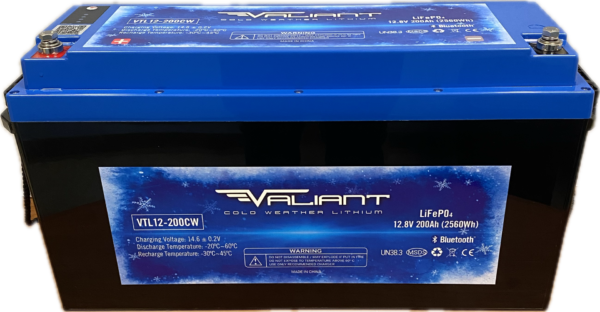

Valiant VTL12-200CW 12V 200Ah Cold Weather LiFePO₄ Deep Cycle Lithium Battery
$2,262.65
In stock
| Weight | 55.1 lbs |
|---|---|
| Dimensions | 21.7 × 9.5 × 8.7 in |
| Features | Drop-In SLA/AGM Replacement, Fast Charging Compatible, Heated Lithium (Cold Weather Rated), High Discharge Rate, Smart BMS |
| Form Factor | Prismatic Cell Lithium |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Application | Off-Grid Systems, RV/Marine House Banks (for freezing climates), Solar Energy Storage |
| Cycle Life | 4000+ cycles @ 80% DoD |
| Terminal Type | M8 Threaded |
| Battery Group Size | 31 |
| Part No | VTL12-200CW |
| Warranty | 10 Years |
| Voltage | 12 |
| Cold Cranking Amps (CCA) | 2000 |
| Cranking Amps (CA | 2500 |
| Reserve Capacity (RC) | 400 min |
| Capacity (Ah) | 200 |
| Brand |
