UNI-T UT681C Cable Tester

Tested cable type: RJ45/RJ11/BNC
Specifications of UT681 Series Cable Testers

Specifications Range UT681L UT681C UT681HDMI Description
Test function To test for: RJ45/RJ11 √
To test for: RJ45/RJ11/BNC √ Need to use RJ45 to BNC adaptor

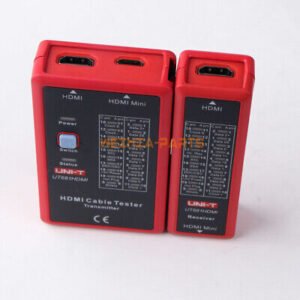

To test for: HDMI/MINI-HDMI √
Fast test mode √ √ LED1~LED8, LED_G
Slow test mode √ √ LED1~LED8, LED_G
Scan test mode √ LED1~LED19, LED_S
Full display test mode √ LED1~LED19, LED_S
To test for the case of short circuit, crossover, open circuit, etc. √ √ √
Ethernet cable: shielded/ unshielded test √ √ √
Manual shutdown function √ √ √
Auto shutdown function √ √ √ No operation within 10 minutes, the device will shut down automatically
Single key operation √ √ √
Power supply: 9V battery √ √ √
Low battery detection √ √ √ Less than 7.2V
Application environment Operating temperature: 0~40℃ √ √ √
Storage temperature: -10~50℃ √ √ √
Operating humidity: 20~80%RH √ √ √
Storage humidity: 10~90%RH √ √ √
Altitude: ≤2000 meters √ √ √
Safety standard CE EN61326-1: 2013; EN61326-2-2: 2013 √ √ √
General Characterisitics
Product color Red and grey
Product net weight Transmitter: 87g; receiver: 51g
Product size Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
Standard accessories 9V battery, BNC to RJ45 adaptor (UT681C)
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 455mm x 410mm x 225mm
Standard carton gross weight UT681L: 6.4kg; UT681C: 8.7kg; UT681HDMI: 9.5kg
