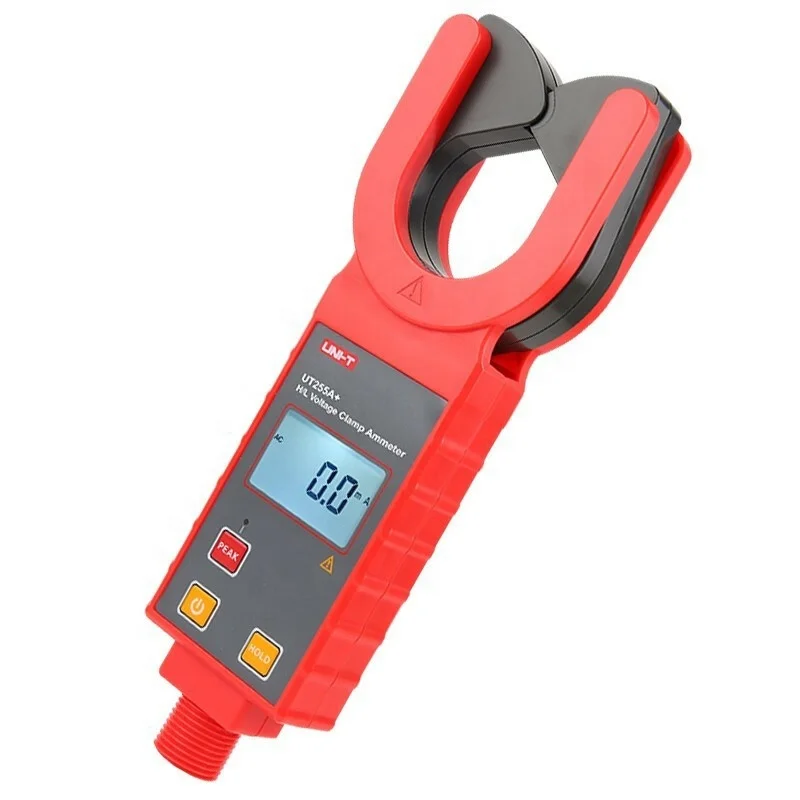

UNI-T UT255A High Voltage Clamp Meter

Leakage current test; Current: 0-600A; voltage range: 0-69KV; 50Hz-60Hz; Jaw size: 33mm; Auto range; Data storage: 99; Overload protection; Auto power off;
Specifications of UT255 Series High Voltage Clamp Ammeters

Specifications Range UT255A UT255B
Leakage current (A) 0.01mA~100A ±(1%+5) ±(1%+5)
100A~600A ±(2%+5) ±(2%+5)
Voltage (Freq.) 0V~69kV (50Hz/60Hz) √ √
Features
Display mode 4 digits LCD √ √
Jaw opening 33mm 33mm
Auto range √ √
Wireless transmission ≤30m √
Data recall √ √
Data storage 99 99
Peak value √ √
LCD backlight √ √
Data hold √ √
Auto power off √ √
Low battery indication √ √
Over-range display OL √ √
Test mode Clamp CT, integration √ √
Sampling rate About 2 times/s √ √
General Characteristics
Power 1.5V Battery (LR03) x 4
Display 47mm x 28.5mm
Product color Red and grey
Product net weight 335g
Product size 68mm x 245mm x 40mm
Standard accessories Batteries, insulation rod, receiver (UT255B)
Standard individual packing Gift box, English manual, tool box
Standard quantity per carton 1pcs
Standard carton measurement 1040mm x 240mm x 140mm
Standard carton gross weight 6.8kg
