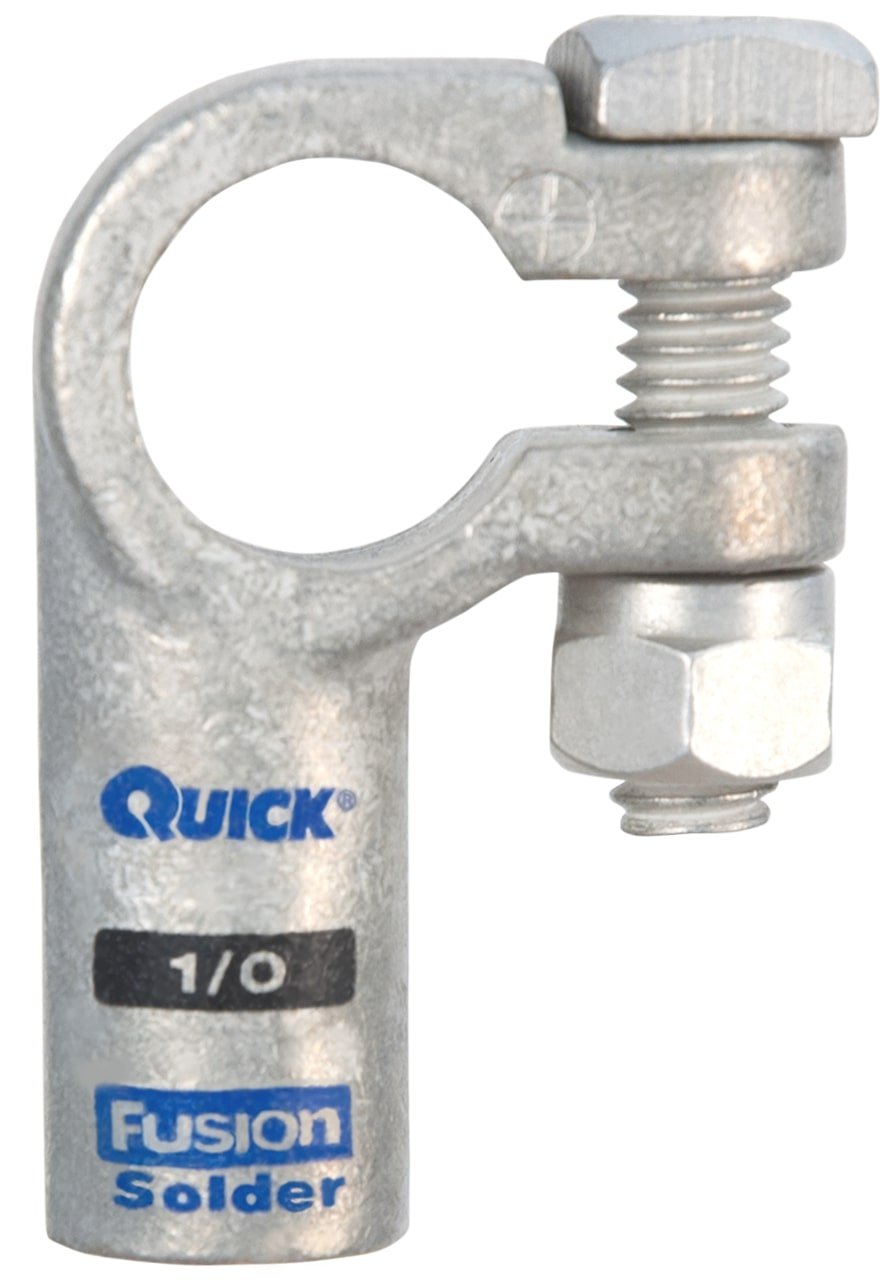

Specification Details
| Parts per Unit | 1, 5, 50 |
|---|---|
| Features | Faster, less confusing and less costly than multi-component solder slug programs, Ideal for field repairs, solder & flux preloaded in Barrel, Made in USA, More consistent quality than any other solder method including traditional wire solder & solder slug, Up to 2x stronger than crimp method |
| Application | Destructive Vibration or Corrosive Chemical Envoirnments, Field Repairs |
| Includes | Fasteners |
| Gauge | 1/0 |
| Pack Type | Bag |
| Plating Material | Tin |
| Polarity | Positive |
| Prop 65 Item | Lead |
| RoHS Item | Lead |
| SAE | No |
| Subject to Prop 65 | Yes |
| Termination Material | Copper |
| Termination Method | Solder |
| UL / CSA | No |
| Works With | Top Posts |
| Brand | Fusion |
| Color | Silver |
| Color Code | Black |
| Orientation | Right Elbow |
| Product Length | 2.07 in |
| Product Width | 1.42 in |
| Production Process | Cast |
| RoHS Compliant | No |
| SKU | 416310-005P, 416310-050P, 416310-2001P, 416310P |
| Product Height | 0.67 in |
| Product Weight | 0.15 lb |
| Tristrip Statement | Strip .91″ (23mm) minimum of insulation from end, fully insert in connectorat time of solder |
| Tristrip Statement / Spanish | Remueva por lo menos 23 mm (0.91 pulgadas) de aislamiento desde un extremo e inserte por completo en el conector en el momento de la soldadura. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
