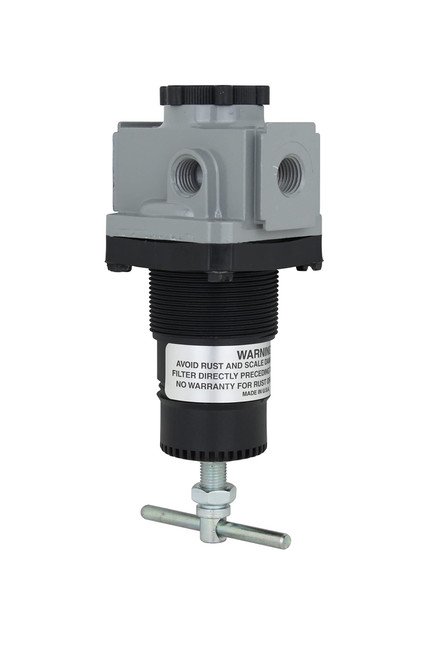

Milton 1113 1/4″ NPT Standard Pressure Regulator

Milton 1113 1/4″ NPT Regulator

1/4″ NPT regulator is the relieving type and offers a stable downstream air pressure over a wide range of air flows with accurate control, fast response time and minimal pressure drop. Offset gage ports can also serve as two 1/4″ supply lines. The aluminum die cast body comes with a balanced piston and molded rubber seat. Has a maximum inlet pressure of 250 PSI and offers up to 50 SCFM.

• 1/4″ national pipe thread
• Maximum of 250 pounds per square inch
• Maximum of 50 standard cubic feet per minute at 100 pounds per square inch
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• Made in USA

Specifications:

• Brand: Milton Industries
• Model: 1113
• Variation Attributes: Size: 1/4″ NPT; Style: Milton Regulator;
• Size: 1/4″ NPT
• Length (cm): 19.2
• Width (cm): 7.4
• Height (cm): 6.6
• Weight (g): 499
