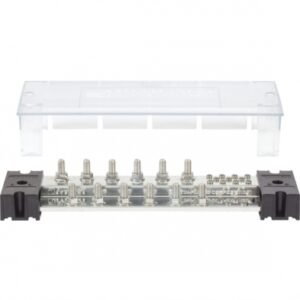

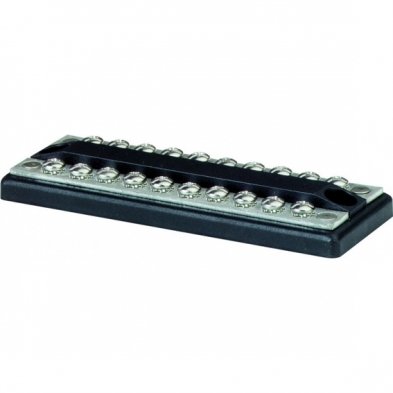

BS2702 DualBus 100A BusBar – 10 Circuit

The BS2702 DualBus combines negative and positive buses for DC Systems or neutral ground buses for AC Systems.

Combines two buses on one block!

Specifications

• Maximum voltage                                       300V AC
                                                                      48V DC
• Number of screw terminals                        10per bus
• Terminal type                                              8-32 screw
• Continuous rating                                        100A
• Base material                                               ABS
• Bus material                                                Tin-plated copper CDA 110/UNS 11000
• Height                                                          5/8“ in (15.88mm)
• Weight                                                         0.30lb (0.14kg)

Space conscious and efficient!
