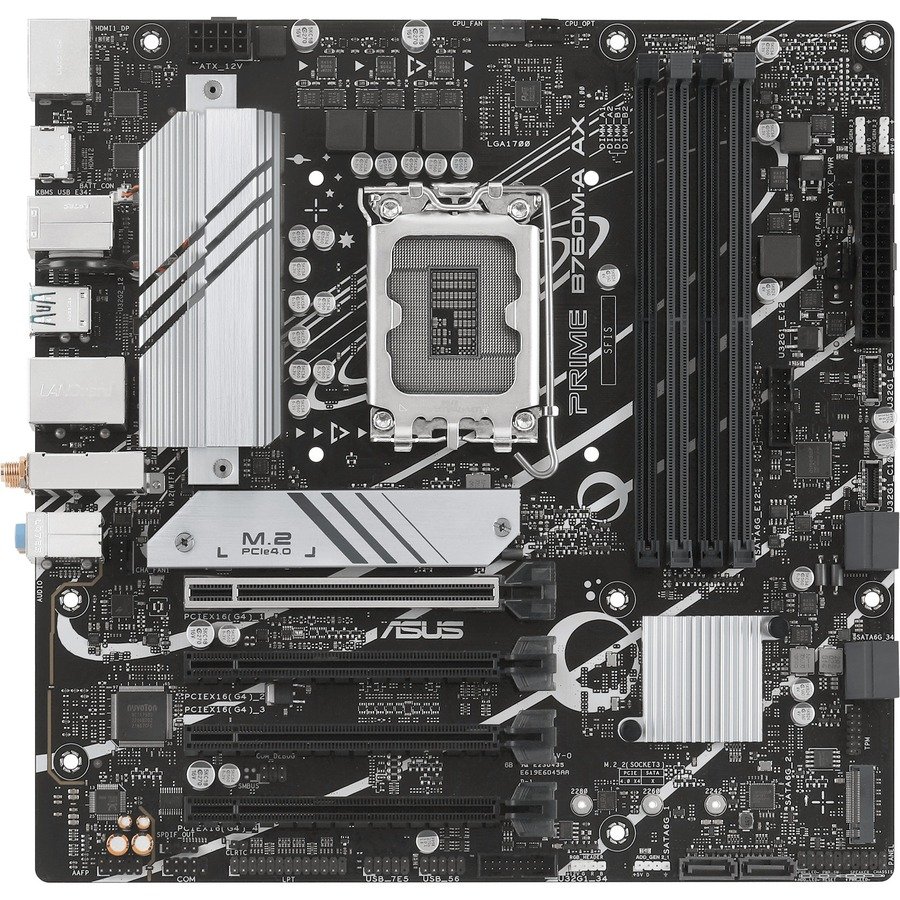

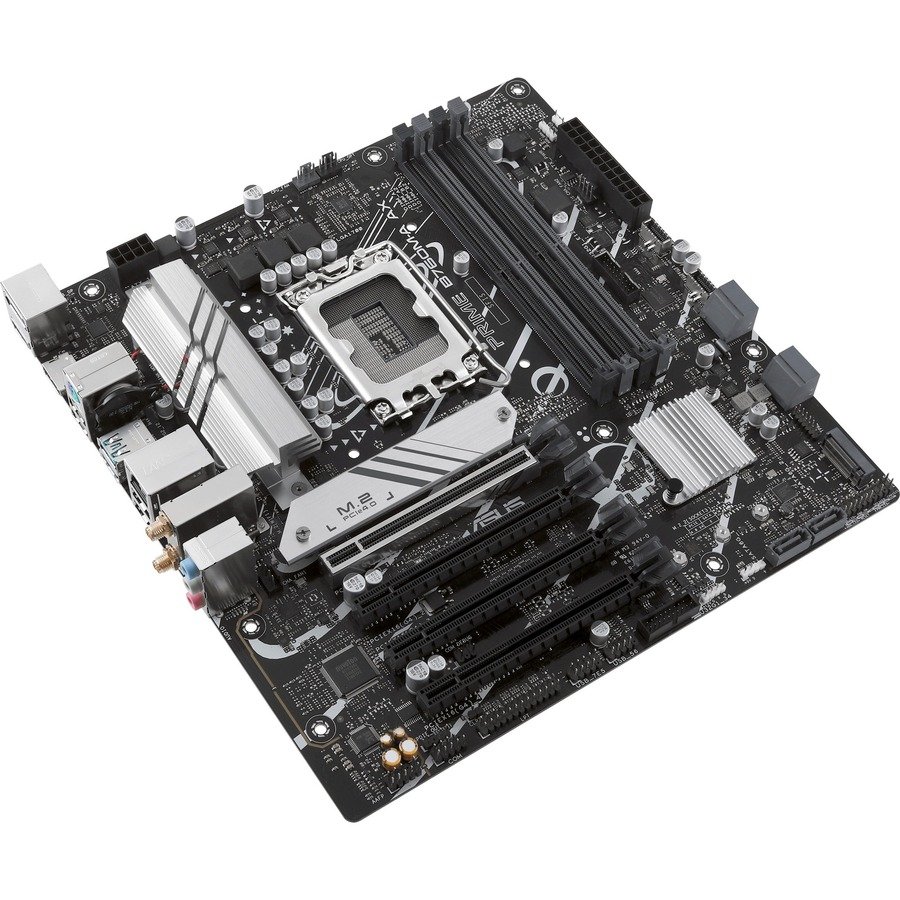

Asus Prime PRIME B760M-A AX Desktop Motherboard – Intel B760 Chipset – Socket LGA-1700 – Micro ATX

Asus Prime PRIME B760M-A AX Desktop Motherboard – Intel B760 Chipset – Socket LGA-1700 – Micro ATX
Asus Prime A620-PLUS WIFI6 Gaming Desktop Motherboard – AMD A620 Chipset – Socket AM5 – ATX

Ryzen 7 Processor Supported – 192 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – IEEE 802.11 a/b/g/ c/ax – HDMI – DisplayPort – 4 x SATA Interfaces

AMD A620 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI, Rear & Front USB 5Gbps Type-C, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync AM5 Socket for AMD Ryzen Desktop Processors Ultrafast Connectivity:PCIe 4.0, dual M.2 slots, WiFi 6, Realtek 1Gb Ethernet, Rear & Front USB 5Gbps Type-C ASUS OptiMem II:Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling:VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware Two-Way AI Noise Cancelation:Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences CEC Tier II ReadyASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series/ 8000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620-PLUS WIFI6 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent Control | All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.Flexible Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

General Information

Manufacturer:

ASUS Computer International

Manufacturer Part Number:

PRIMEA620PLUSWIFI6

Manufacturer Website Address:

http://www.asus.com

Brand Name:

Asus

Product Line:

Prime

Product Model:

A620-PLUS WIFI6

Product Name:

PRIME A620-PLUS WIFI6 Gaming Desktop Motherboard

Marketing Information:

Product Type:

Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:

AMD

Chipset Model:

A620

Total Processor Supported:

1

Processor Socket:

Socket AM5

Processor Supported:

Ryzen 7

Memory

Number of Memory Slots:

4

Memory Form Factor:

DIMMUDIMM

Maximum Memory Supported:

192 GB

Memory Technology:

DDR5 SDRAM

Memory Speed Supported:

7600 MHz7200 MHz7000 MHz6800 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz

I/O Controller

Controller Type:

Serial ATA/600

RAID Supported:

Yes

RAID Levels:

0110

Video

Onboard Video:

CPU Dependent Video

Audio

Audio Channels:

7.1

Network & Communication

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 5.3

Gigabit Ethernet:

Yes

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11 a/b/g/ c/ax

I/O Expansions

Total Number of Expansion Slots:

5.0

PCI Express Standard:

PCI Express 4.0PCI Express 3.0

Total Number of PCI Express Slots:

5

Number of PCI Express x16 Slots:

5

Interfaces/Ports

Total Number of USB Ports:

6

S/PDIF:

Yes

HDMI:

Yes

HDMI Version:

2.1

DisplayPort:

Yes

Number of Network (RJ-45) Ports:

1

Onboard Interfaces

Number of SATA Interfaces:

4

Number of M.2 Interfaces:

2

Total Number of Onboard USB Ports:

7

Number of Onboard USB 2.0 Ports:

4

Physical Characteristics

Form Factor:

ATX

Width:

12.01″ (305 mm)

Depth:

9.61″ (244 mm)

Miscellaneous

Brand Compatibility:

AMD

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
