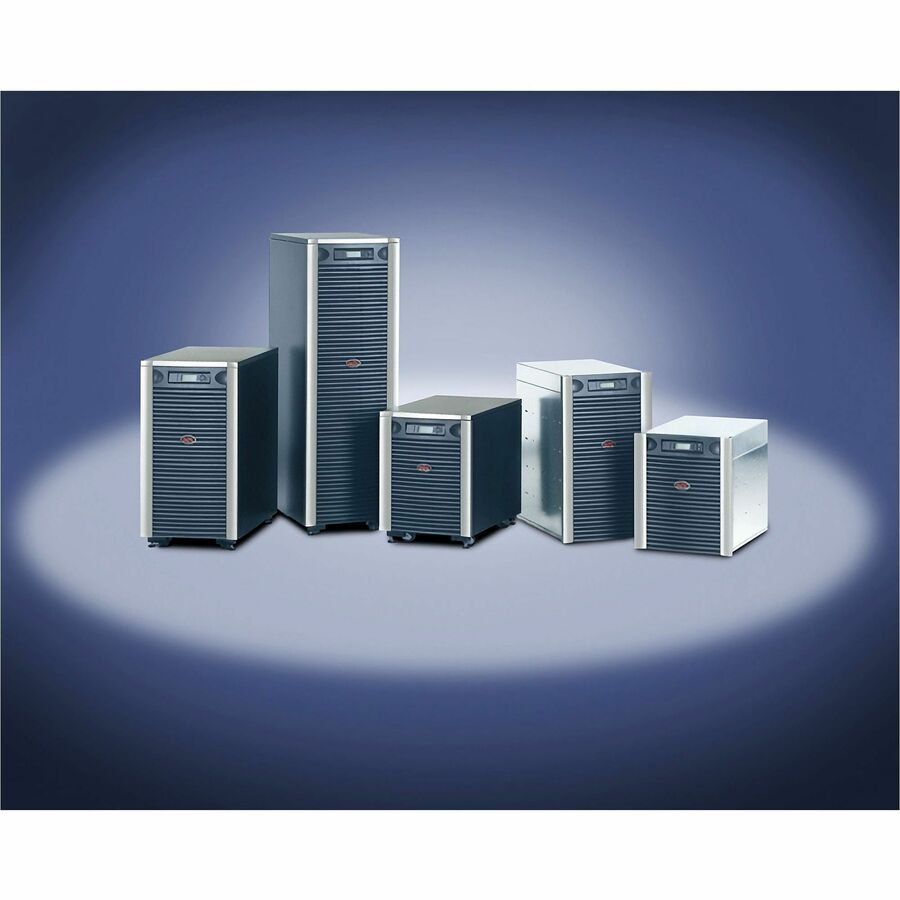

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS
General Information

Manufacturer:

Schneider Electric SA

Manufacturer Part Number:

SYA16K16P

Manufacturer Website Address:

http://www.schneider-electric.com

Brand Name:

APC by Schneider Electric

Product Line:

Symmetra

Product Series:

LX

Product Name:

Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS

Marketing Information:

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Product Type:

Double Conversion Online UPS

Technical Information

Plug/Connector Type:

Hard Wire 4-wire

Receptacle Type:

Hard Wire 4-wire

Receptacle Detail:

1 x Hard Wire 4-wire

Number of Battery & Surge Outlets:

1

Overload Protection:

Yes

Power Description

Load Capacity (VA):

16 kVA

Input Voltage:

208 V AC

Output Voltage:

120 V AC208 V AC

Input Current:

75 A

Waveform Type:

Sine Wave

Management

Network Management:

SNMP Manageable

Bypass Switch:

AutomaticManual

Emergency Power OFF:

Yes

Interfaces/Ports

Modular Slots:

1 x SmartSlot

Battery Information

Battery Characteristics:

Spill-proof/Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

6 Minute

Backup/Run Time (Half Load):

17.10 Minute

Typical Battery Recharge Time:

3 Hour

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Thermal Dissipation:

4995 BTU/h

Physical Characteristics

Color Family:

Dual Color

Product Color:

BlackSilver

Form Factor:

Tower

Mounting Location:

Front

Height:

36.89″ (937 mm)

Width:

19.02″ (483 mm)

Depth:

28.58″ (726 mm)

Weight (Approximate):

307.74 kg

Miscellaneous

Package Contents:

Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS CD with softwareInstallation guideUser manualWeb/SNMP management card

Additional Information:

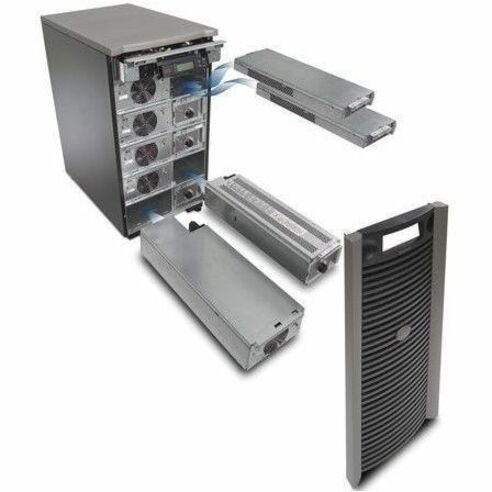

Audible and visible alarms prioritized by severityConfigurable for N+1 internal redundancyRedundant Intelligence ModulesHot-swappable intelligence modulesHot-swappable power modulesAutomatic restart of loads after UPS shutdownInfraStruXure Manager CompatibleRemovable input/output wiring trayCold-start capableGenerator Compatible

Certifications & Standards:

CSA

Green Premium:

Yes

Optimized Energy Efficiency:

Yes

Product Take Back Program:

Yes

RoHS Exemption Information:

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA16K16P_ROHS_DECLARATION&p_FileName=SYA16K16PKIT_ROHS_DECLARATION_US.pdf

REACH Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=766154&lang=en-us

EU RoHS Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=766154&lang=en-us

Environmental Profile Availability:

https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712017_V1

End of Life Manual Availability:

https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712017_V1

California Proposition 65 Warning:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

REACH free of SVHC:

No

Country of Origin:

United States

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace
