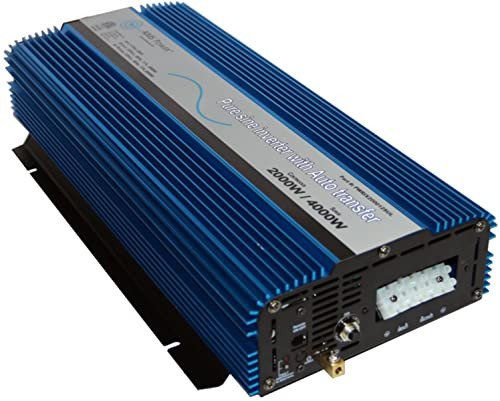

AIMS Power 2000W Pure Sine Inverter with Transfer Switch (PWRIX2000SUL) is an ideal power solution for RVs, boats, and mobile businesses that require reliable power for medium-sized devices. ETL certified to conform to UL 458 standards, this inverter features pure sine wave output, ensuring safe operation for sensitive electronics and appliances. It’s easy to install, with a built-in automatic transfer switch (ATS) that automatically switches between city power and battery power without the need for additional wiring. Power devices like microwaves, refrigerators, freezers, heaters, computers, tools, compressors, and pumps with ease. The AIMS Power 2000W Inverter comes with a 2-year warranty and is designed to handle demanding applications in both residential and mobile setups.
Features & Benefits:
- Pure sine wave output for sensitive devices
- ETL listed and UL 458 compliant
- Built-in 25A automatic transfer switch (ATS) with less than 20ms transfer time
- Hardwire direct connect terminal block for AC
- 2000W continuous power, 4000W surge capability
- Intelligent cooling fan with thermal protection
- Conformal coating for marine use
- No need for programming or DIP switches
- AC pass-through when the inverter is off or disconnected
- Optional remote switch available for easy operation
Specifications:
- 2000 watts continuous power
- 4000-watt surge (not recommended for startup applications)
- 25A automatic transfer switch, transfer time <20 msec
- Bypass/throughput = 25 amps (Do not exceed; damage may occur)
- DC input voltage: 10-16V
- AC input voltage: 120VAC ±10%
- Output voltage: 120VAC, 60Hz
- Efficiency: 86-90%
- THD: <3%
- Over voltage shutdown: 16VDC ±0.5V
- Under voltage shutdown: 10VDC ±0.5V
- Under voltage alarm: 10.3VDC ±0.3V
- Over temperature protection: 150°F ±5°F
- Thermal fan for cooling
- No load current: 1.2A
- Dimensions (L x W x H): 21.5″ x 9.5″ x 3.8″
- Weight: 14.4 lbs (unit), 18 lbs (boxed)
- Optional remote: Part # REMOTEHF (flush mount design)
- Optional DIP switches to blackout the lights
