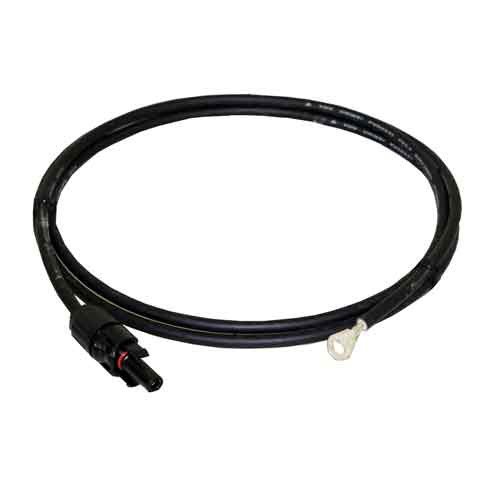

The AIMS Power 10 AWG PV Wire Male MC4 to Lug End (PVML15FT10AWG) is a high-performance cable designed specifically for solar applications. This durable wire features a male MC4 connector on one end and a lug end on the other, making it ideal for connecting multiple solar panels or linking solar panels to a charge controller. Made with weatherproof materials, this cable is built to withstand the rigors of outdoor use, ensuring reliable performance in various environmental conditions. Available in lengths from 6 feet to 100 feet, this UL-listed 10 AWG PV cable meets rigorous safety and performance standards, making it a trusted choice for solar energy systems.
The AIMS Power PV wire is constructed with tinned copper for optimal conductivity and is rated for high temperatures. Its robust design includes features that resist UV rays, moisture, and other elements that can affect performance. With a flexible structure and easy installation, this cable is perfect for both DIY solar projects and professional installations.
Specifications:
Voltage Rating: 600 V
Tinned Copper OD: 2.59 mm
Temperature Rating: 90 °C (194 °F) dry or wet
Ambient Temperature: -40 °C to +90 °C (-40 °F to +194 °F)
Max Short Circuit Temperature: 250 °C (482 °F)
Bending Radius: ≥ 5 × outer diameter
Conductor Structure: 75/0.30 TC
Conductor ID: 3 mm
XLPE Thickness: 0.72 mm
Jacket OD: 6.4 mm
Weight: 5.6 lbs per 100 ft
Allowable Current: 49.6 A
Conductor Resistance: 3.59 Ω/km
UL Standard: UL4703
