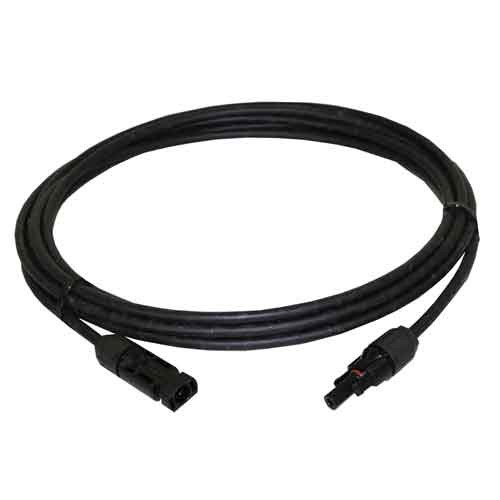

AIMS Power 10 AWG PV Wire Extension 30 Ft (PVEXT30FT10AWG) is the perfect solution for extending your solar power system’s reach. This high-quality extension cable is designed with robust features, including MC4 male and female connectors, ensuring compatibility with all popular connectors in the market. The cable boasts a moisture-curable cross-linked construction, providing excellent resistance against UV, water, ozone, and various fluids, making it suitable for outdoor applications. Additionally, it is flame retardant and RoHS compliant, ensuring safety and environmental standards are met. Whether you are installing a new solar panel or expanding your existing system, the AIMS Power 10 AWG PV Wire Extension will deliver optimal performance and longevity.
Specifications:
- Length: 30 ft
- Connectors: MC4 male and female
- Voltage Rating: 600 V
- Tinned Copper Outer Diameter: 2.59 mm
- Temperature Rating: 90 °C dry or wet, 194 °F dry or wet
- Ambient Temperature Range: -40 °C to +90 °C (-40 °F to +194 °F)
- Max Short Circuit Temperature: 250 °C (+482 °F)
- Bending Radius: ≥ 5 × outer diameter
- Structure: 75/0.30 TC
- Conductor Diameter: 3 mm
- XLPE Thickness: 0.72 mm
- Jacket Outer Diameter: 6.4 mm
- Weight: 5.6 lbs per 100 ft
- Allowable Current: 49.6 A
- Conductor Resistance: 3.59 Ω/km
- Certification: UL 4703
