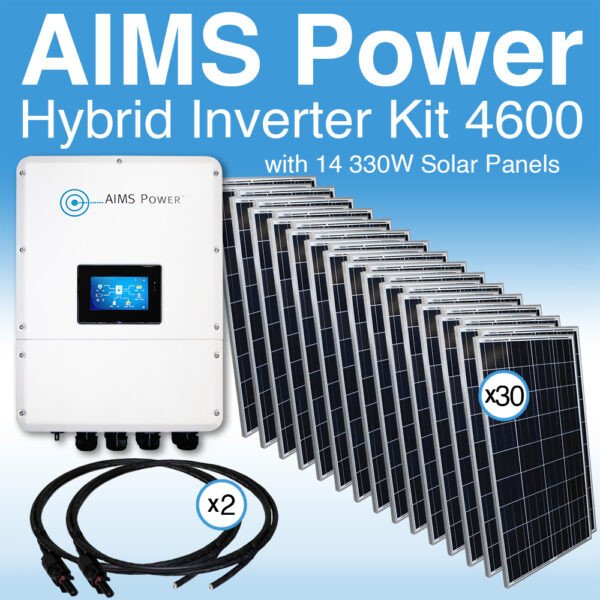

HYBRID INVERTER SPECS
|
SOLAR PANEL SPECS
- Maximum power (Watt): 330 Watt
- Optimum power voltage (Vmp): 33.9 volts
- Optimum operating current (Imp): 9.73 amps
- Open circuit voltage (Voc): 41.5 volts
- Short circuit current (Isc): 10.22 amps
- Solar cell: 158.75 * 158.75 mm mono
- Number of cells (pcs): 6*10
- Front glass thickness (mm): 3.2 mm
- Temperature coefficients of Isc (%) °C: -.048
- Temperature coefficients of Voc (%) °C: -0.29
- Temperature coefficients of Pm (%) °C: -0.37
- Temperature range: -40°C to +80°C
- Tolerance wattage: 0-3 watts
- Surface maximum load capacity: 6000Pa
- Allowable hail load: 45mm at 30.7m/s
- Bypass diode rating (A): 10
- Cell efficiency (%): 21.47%
- Module efficiency (%): 19.78%
- Warranty: 91.2% of 12 years, 80.6% of 25 years
- Standard test conditions: AM1.5 1000W/m 25 +/-2°C
- FF (%): 70-76%
- Cable length on solar panel – 41″
- Dimensions of module (inches): 65.35 x 39.37 x 1.4
- Weight per panel (lbs): 39.7 lb
