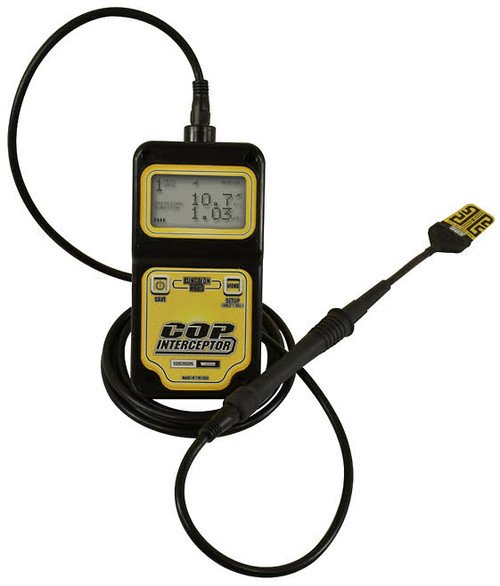

COP Interceptor – Advanced Ignition Analysis Tool

The COP Interceptor is designed to measure, display, and save secondary ignition data from each coil-on-plug system in real-time, allowing for detailed ignition analysis. Easily verify intermittent misfires visually without the need for diagnostic trouble codes.

Key Features:

• Effortless operation with only 2 buttons – simpler than an oscilloscope.
• Compatible with various styles of COP ignition systems.
• Equipped with a 9″ probe and a 2-1/2″ bendable arm.
• No need to remove the COP for analysis.
• Includes misfire counter and indicator.
• Automatic gain calibration for precise measurements.
• Provides real-time kV and mS readings.

Benefits:

• User-friendly design delivering advanced ignition data.
• Identifies intermittent issues that do not trigger Diagnostic Trouble Codes (DTC).
• Allows quick testing of COP ignition under actual operating conditions.
• Self-calibrates to ensure the most accurate data across various COP ignition systems.
• Measures secondary circuits’ breakdown voltage and arc/burn duration in real-time.

Specifications:

• Breakdown Voltage Measurement Range: +/- 30kV
• Arc Duration Measurement Range: 0.3 – 5.0 mS
• Resolution: 0.1kV and 0.01 MS
• Multi-Strike Ignition: Displays first voltage event and last mS events
• Misfire Detection: Functional from 240-4000 RPM
• Voltage Supply: 9V Battery (8-10 VDC)

Included in the Kit:

• COP Interceptor
• 9” Probe with a 2-1/2” bendable arm
• High sensitivity receiver pad
• Low sensitivity receiver pad
• 9V Battery
• Soft zipper case
