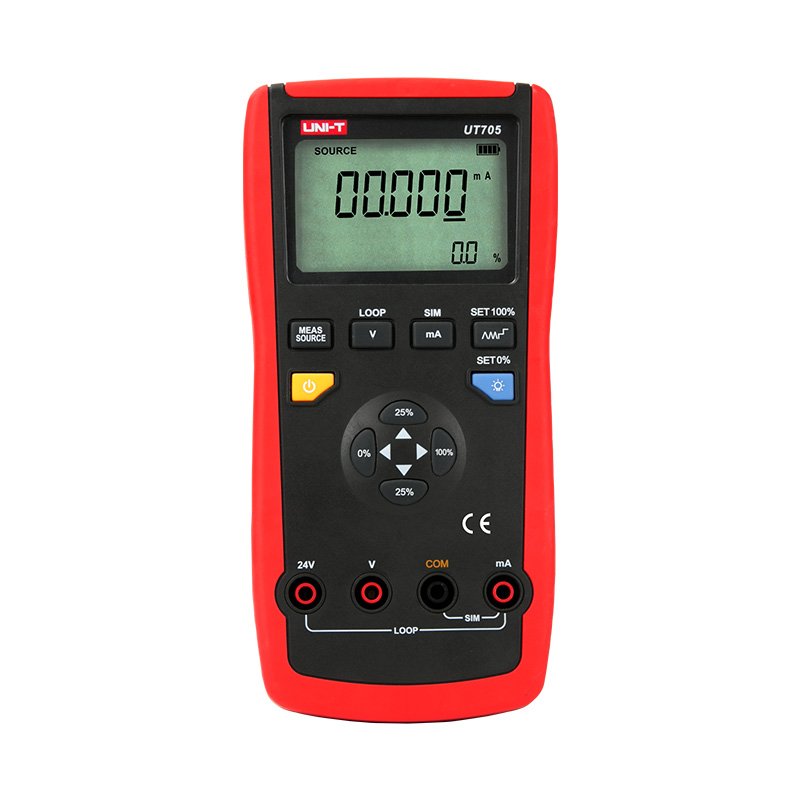

UNI-T UT705 Process Calibrator

DC voltage : 30.000V ; DC current : 24.000mA; Loop current: 24.000mA ;
DC current : source: 24.000mA ±: 0.02+2; DC current : 24.000mA;
Specifications of UT705 Single Function Loop Calibrator

Specifications Range UT705
Measure accuracy
DC voltage (V) 30.000V ±(0.02+2)
DC current (A) 24.000mA ±(0.02+2)
Loop current 24.000mA ±(0.02+2)
Source accuracy
DC current (source) 24.000mA ±(0.02+2)
DC current (simulate) 24.000mA ±(0.02+2)
Features
Loop power function Voltage: 24V
Accuracy: 10%
Ramp functions Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range
General Characteristics
Power 9V battery (6F22)
Display 63mm x 40mm
Product color Red and grey
Product net weight 410g
Product size 96mm x 193mm x 47mm
Standard accessories Test leads, battery
Standard individual packing Gift box, English manual, cloth bag
Standard quantity per carton 5pcs
Standard carton measurement 325mm x 225mm x 285mm
Standard carton gross weight 4.5kg
