DC Mv: 100.000mV, 1000.000mV; Resistance : 500.0Ω/5000Ω; Thermocouples: J/K/T/E/R/S/B N ; Wre526 RTDs: Pt10/Pt100: Cu50/Cu100;

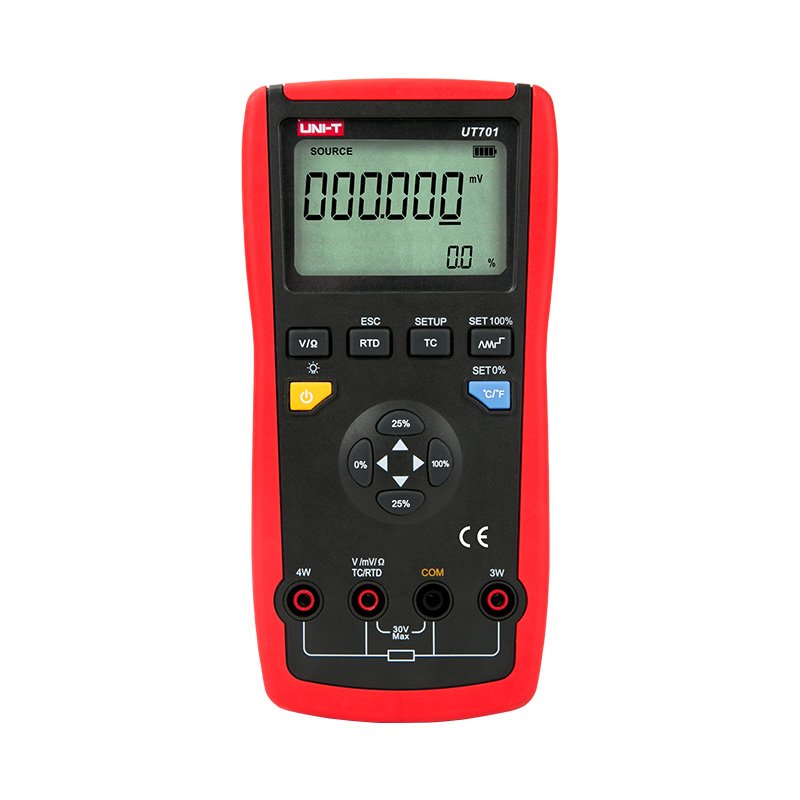

Specifications of UT701 Single Function Temperature Calibrator
Specifications Type Range UT701
Source accuracy
DC mV 100.000mV ±(0.05%+3)
1000.0mV ±(0.05%+3)
Resistance (Ω) 500.0Ω ±(0.05%+2)
5000Ω ±(0.05%+2)
Thermocouples J -20~1200℃ (-328~2192℉) ±0.7℃
K -200~1370℃ (-328~2498℉) ±1℃
T -200~400℃ (-328~752℉) ±0.8℃
E -200~950℃ (-328~1742℉) ±0.7℃
R -20~1750℃ (-4~3182℉) ±1.4℃
S -20~1750℃ (-4~3182℉) ±1.5℃
B 600~1800℃ (1112~3272℉) ±1.4℃
N -200~0~1300℃ (-328~2372℉) ±0.9℃
Wre325 0~2000℃ (32~3632℉) ±1.8℃
Wre526 0~2300℃ (32~4172℉) ±1.8℃
RTDs Pt10 -200~850℃ (-328~1562℉) ±(0.5%+6℃)
Pt100 ±(0.05%+0.6℃)
Cu50 -50~150℃ (-58~302℉) ±(0.05%+0.6℃)
Cu100 ±(0.05%+0.6℃)
Features
Ramp functions Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range
General Characteristics
Power 9V battery (6F22)
Display 63mm x 40mm
Product color Red and grey
Product net weight 410g
Product size 96mm x 193mm x 47mm
Standard accessories Test leads, battery
Standard individual packing Gift box, English manual, cloth bag
Standard quantity per carton 5pcs
Standard carton measurement 325mm x 225mm x 285mm
Standard carton gross weight 4.5kg
