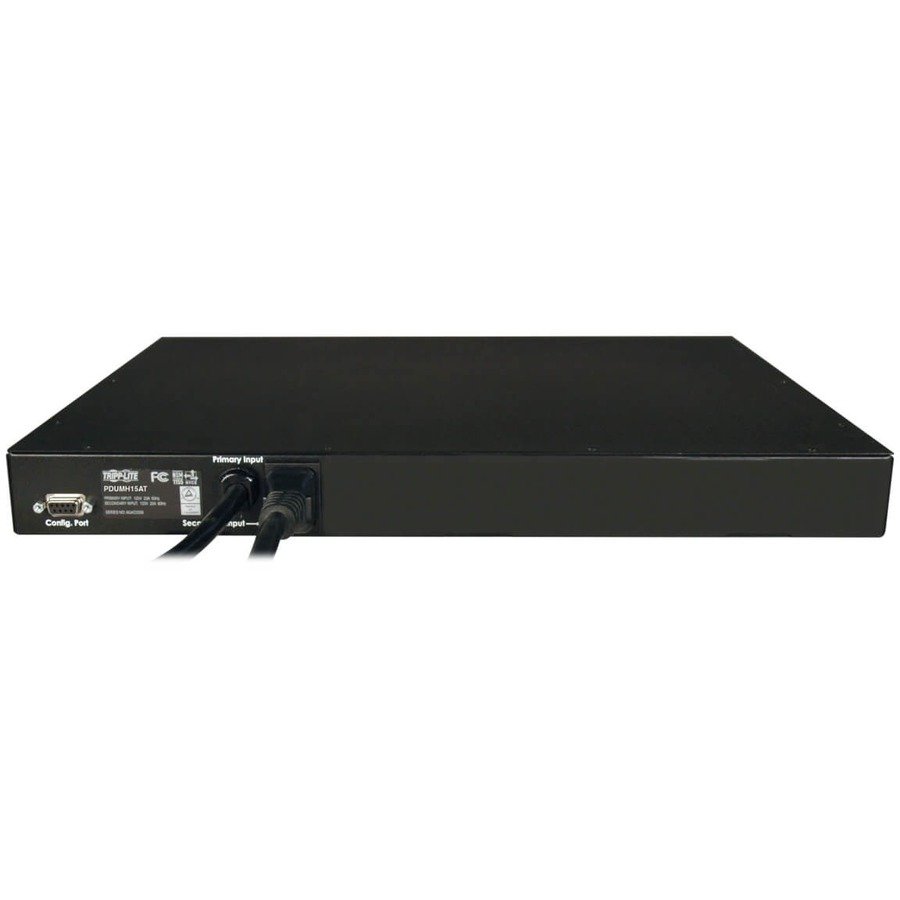

Tripp Lite PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet

Tripp Lite PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet
General Information

Manufacturer:

Tripp Lite by Eaton

Manufacturer Part Number:

PDUMH15AT

https://tripplite.eaton.com/

Brand Name:

Tripp Lite by Eaton

Product Model:

PDUMH15AT

Product Name:

PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet

Marketing Information:

Tripp Lite’s 120V 15A metered PDU system with Automatic Transfer Switching (ATS) is an 8 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned on at 250 milliscond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 8 NEMA 5-15R outlets, and two 12 ft. 5-15P input power cord. Optional integrated ATS is available for use when two separately derived input power sources are available. The attached power cord serves as the primary AC input cable, while the included detachable power cord serves as the optional-use secondary AC input connection. The PDU system passes the primary input power through to connected equipment whenever line voltage and frequency levels are normal. If the primary input source goes outside of these tolerances or fails altogether, the ATS will automatically switch all PDU output to the secondary line sourced input power (when available) to maintain continuous operation of connected loads without reboots or service interruptions. Once the primary power source is restored, the PDU will automatically switch back to primary sourced input power. The dual input cabling can be configured for UPS maintenance bypass of standard UPS s

Product Type:

PDU

Technical Information

Plug/Connector Type:

NEMA 5-15P

Plug/Connector Detail:

2 x NEMA 5-15P

Receptacle Type:

NEMA 5-15R

Receptacle Detail:

8 x NEMA 5-15R

Power Description

Input Voltage:

120 V AC

Output Voltage:

120 V AC

Power Rating (VA):

1.80 kVA

Management

Management:

Optional Automatic Transfer Switch (ATS) function enables for hot-swappable UPS maintenance bypassDual UPS protection or dual AC input redundancy for critical single-corded network hardwareSlot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP

Physical Characteristics

Mount Type:

Rack-mountable

Rack Height:

1U

Height:

1.75″ (44.45 mm)

Width:

17.50″ (444.50 mm)

Depth:

14.50″ (368.30 mm)

Weight (Approximate):

4.99 kg

Miscellaneous

Package Contents:

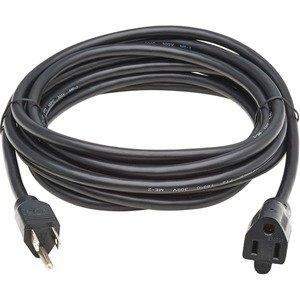

PDUMH15AT PDU Metered ATS 120V 15A 8 OutletPDU with attached 5-15P input power cordDetachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary inputUser manual with warranty information

Certifications & Standards:

60950Class ARoHS compliant

Country of Origin:

Taiwan

TAA Compliant:

Yes

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year
