Tripp Lite PDU1230 PDU Basic 208V / 240V 30A 20 Outlet

Tripp Lite PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
General Information

Manufacturer:

Tripp Lite by Eaton

Manufacturer Part Number:

PDU1230

https://tripplite.eaton.com/

Brand Name:

Tripp Lite by Eaton

Product Model:

PDU1230

Product Name:

PDU1230 PDU Basic 208V / 240V 30A 20 Outlet

Marketing Information:

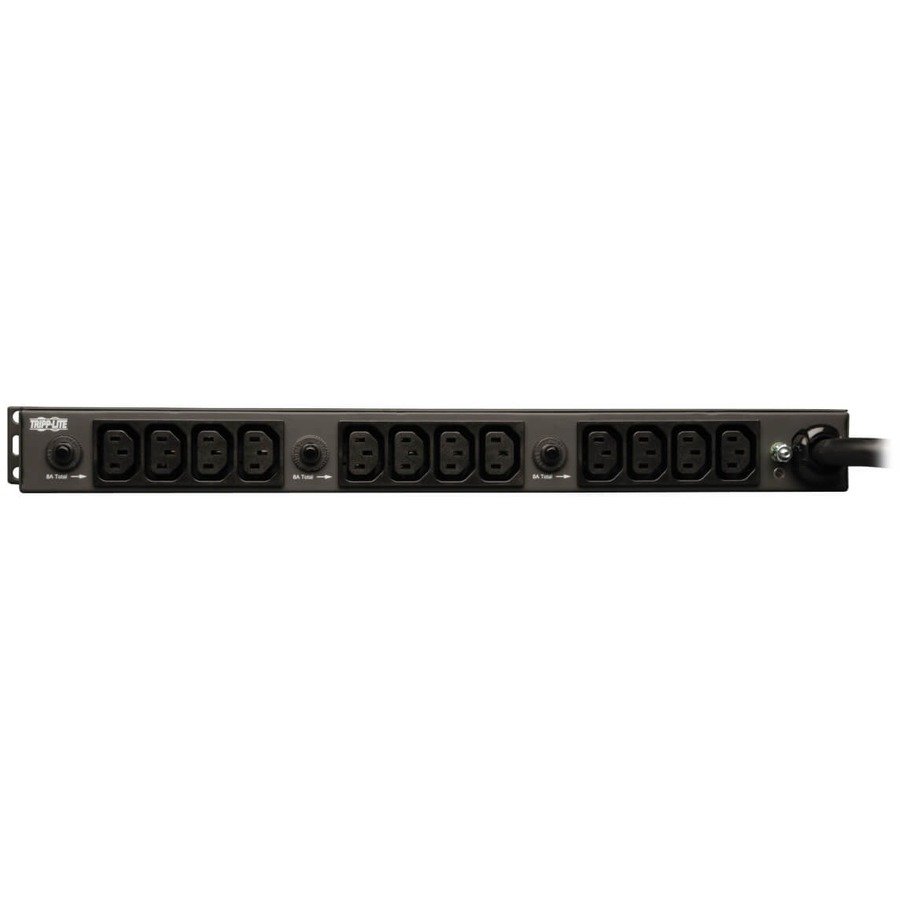

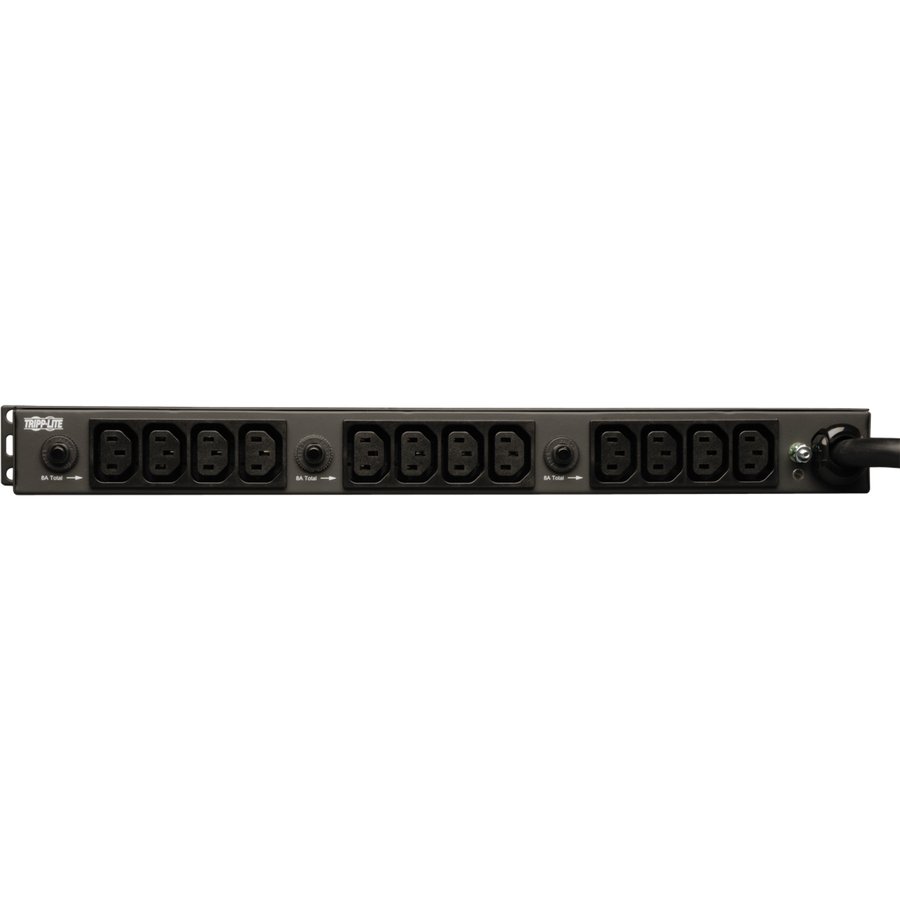

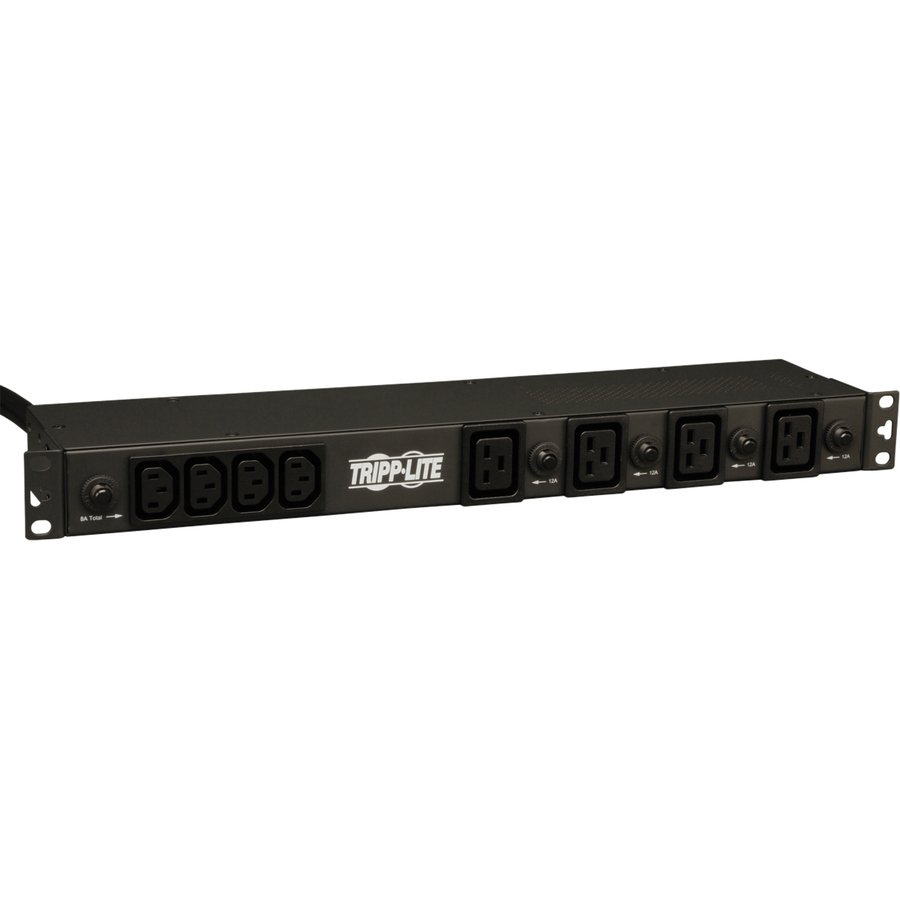

Tripp Lite’s PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.

Product Type:

PDU

Technical Information

PDU Type:

Basic

Plug/Connector Type:

NEMA L6-30P

Receptacle Detail:

20

Power Description

Input Voltage:

230 V AC

Input Voltage Range:

208 V AC – 240 V AC

Output Voltage:

208 V AC240 V AC

Power Rating (VA):

4.99 kVA

Physical Characteristics

Mounting Orientation:

Vertical

Mount Type:

Rack-mountable

Rack Height:

1U

Height:

1.75″ (44.45 mm)

Width:

17.50″ (444.50 mm)

Depth:

5.20″ (132.08 mm)

Weight (Approximate):

3.40 kg

Miscellaneous

Package Contents:

PDU1230 PDU Basic 208V / 240V 30A 20 OutletInstruction Manual with Warranty Information

Additional Information:

Output Receptacles:4 x C1916 x C13

Country of Origin:

China

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

5 Year
