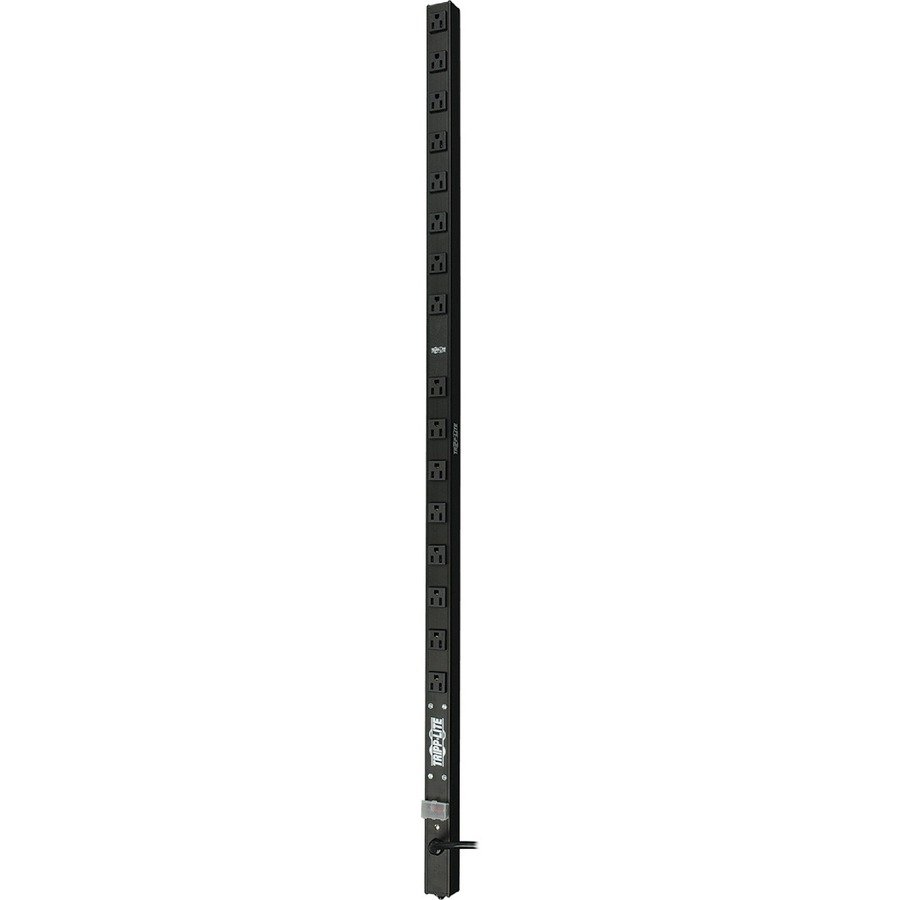

Tripp Lite by Eaton PDUV15-48 16-Outlets PDU

Tripp Lite by Eaton PDUV15-48 16-Outlets PDU
General Information

Manufacturer:

Tripp Lite by Eaton

Manufacturer Part Number:

PDUV15-48

https://tripplite.eaton.com/

Brand Name:

Tripp Lite by Eaton

Product Model:

PDUV15-48

Product Name:

PDUV15-48 16-Outlets PDU

Marketing Information:

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV15-48 features 16 NEMA 5-15R outlets for connecting equipment. A 15-foot cord with 5-15P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices

The 48-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface.

Product Type:

PDU

Technical Information

PDU Type:

Basic

Phase:

Single Phase

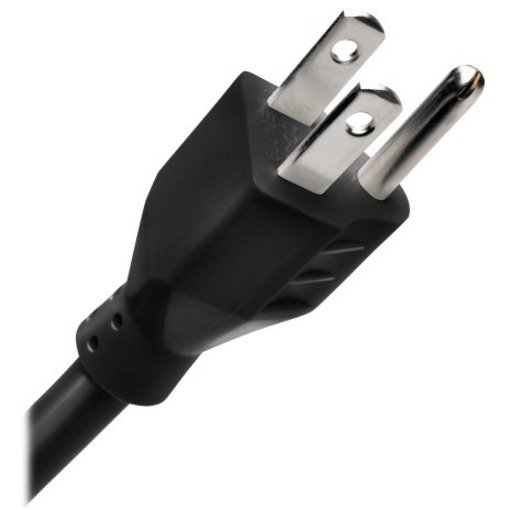

Plug/Connector Type:

NEMA 5-15P

Receptacle Type:

NEMA 5-15R

Receptacle Detail:

16 x NEMA 5-15R

Protection Type:

Overload ProtectionAccidental Power Shutdown

Power Description

Input Voltage:

120 V AC

Output Voltage:

100 V AC120 V AC127 V AC

Power Rating (Watt):

1.44 kW

Input Current:

15 A

Circuit Breaker:

Yes

Physical Characteristics

Mounting Orientation:

Vertical

Placement:

Under-counter

Rack Height:

0U

Cord Length:

15 ft

Height:

48.47″ (1231.14 mm)

Width:

1.50″ (38.10 mm)

Depth:

1.64″ (41.66 mm)

Weight (Approximate):

1.70 kg

Miscellaneous

Package Contents:

PDUV15-48 16-Outlets PDU Rack-Mounting Hardware Owner’s Manual

Country of Origin:

China

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

2 Year
