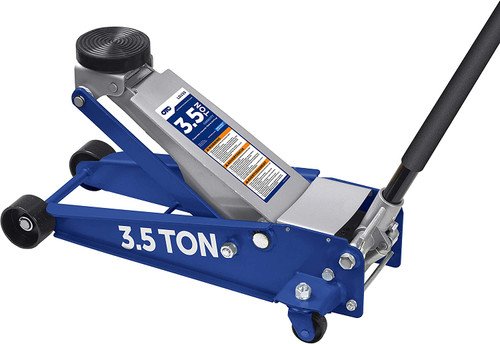

OTC LDJ35 3.5-Ton Service Jack

OTC LDJ35 3.5-Ton Service Jack

The LDJ35 is a 3-1/2-ton capacity service jack that is ideal for both a large automotive service center or a one-person shop. Under load, the dual-stage hydraulic unit can reach maximum height in 7 pumps. An extra wide lifting range increases the versatility for shops. A padded spring-loaded handle rapidly returns after each pump, allowing techs to lift the vehicle faster with less effort. Heavy-duty rolled edge construction adds strength and resists twisting for increased safety. Dual Pump Design lifts 800kg (1750 lb) load to 19 inches in just 3 pumps. Cycle tested design for a long life of professional duty.

• 3.5-ton capacity
• Lifting range: 5.2″ to 21.9″
• Reach: 78.5″
• Saddle: 6″ dia., flat steel, rubberized, pinned to lifting arm
• Frame height: 6.25″
• Handle length: 50″ spring-loaded padded lower handle
• Floor space: 14.5″ x 28.5″
• Casters: 4; 3.15″ front fixed (2), 2.5″ rear swivel (2)
