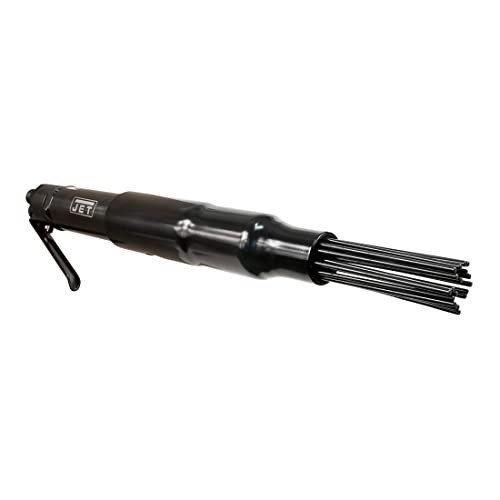

Jet JAT-800 Model Pneumatic Needle Scaler (505802)

The Jet JAT-800 Model Pneumatic Needle Scaler (505802) is a powerful and versatile tool designed for efficient removal of rust, weld slag, and paint. Its heavy-duty construction and lever lock retainer ensure durability and ease of use. With its ability to convert to a flux chipper, this tool offers added versatility for various tasks. Backed by JET’s 2-year warranty, you can rely on this product for reliable performance.

KEY FEATURES AND BENEFITS:

• Efficiently removes rust, weld slag, and paint
• Converts from needle scaler to flux chipper
• Durable construction with heat-treated components
• Quick tool changes with lever lock retainer
• Backed by a 2-year warranty

SPECIFICATIONS:

• Model Number: JAT-800A
• Stock Number: 505802
• Air Consumption: 4 CFM
• Air Hose (ID): 3/8 in.
• Air Inlet: 1/4 NPT
• Blows Per Minute: 4600
• Number of Needles: 19
• Overall Length: 18.3 in.
• Needle Size: 3 mm
• Sound Power: 104 dB(A)
• Sound Pressure: 92 dB(A)
• Stroke Length: 1-1/8 in.
• Vibration Value: 10.2 m/s²
• Weight: 6.28 lbs.
• Gross Weight: 6.67 lbs.
• Min. Air Hose (ID): 3/8 in.

HOW TO USE:

1. Ensure the tool is connected to a properly regulated air compressor.
2. Attach the desired air hose to the 1/4 inch NPT air inlet.
3. Inspect the tool for any damage or missing parts.
4. Wear appropriate safety gear, including eye protection, ear protection, and gloves.
5. Turn on the air compressor and gradually increase the air pressure.
6. Hold the tool firmly and apply it to the surface to be cleaned.
7. Move the tool in a back-and-forth motion to remove material.
8. Regularly check the needle condition and replace worn needles as needed.
9. After use, clean the tool with compressed air and lubricate moving parts.
10. Store the tool in a dry, secure location.

BENEFITS OF USING Jet JAT-800 Model Pneumatic Needle Scaler (505802):

• Saves time and effort compared to manual methods
• Improves surface preparation for painting or coating
• Versatile tool for multiple applications
• Durable construction for long-lasting performance
• Backed by a reliable warranty

FEATURES:

• Heavy-duty, heat-treated barrels and pistons
• Lever lock retainer for quick tool changes
• Includes one set of 19 needles
• Convertible to flux chipper
• Efficient air consumption
• Ergonomic design for comfortable use
