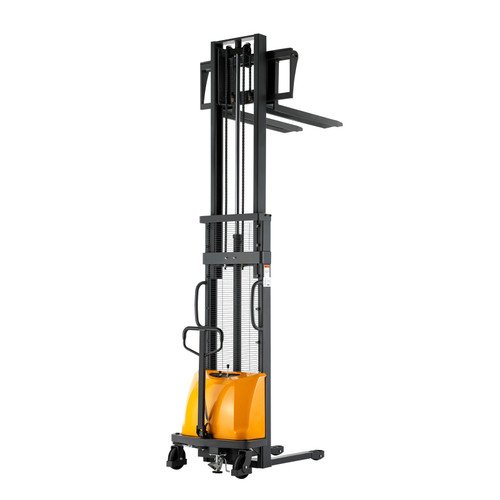

Manual Push And Pull, Powered Lifting And Lowering
- 1,500-watt lift motor.
- Special chain steering system.
- Easy operation for lifting and lowering.
- Strong battery with 12V/100AH capacity and over charge design.
- Adjustable forks & fix legs.
| Model No. | Load Capacity | Legs Type | Battery Capacity | Lifting Height | Height Lowered | Wt (Lbs) | Price Each |
| A-3016 | 3,300 lbs | Fixed | 12V/100AH | 118” | 3.5” | 910 | $3337 |
| A-3011 | 3,300 lbs | Straddle | 12V/100AH | 98″ | 3.5” | 950 | $3537 |
| A-3012 | 3,300 lbs | Straddle | 12V/100AH | 118″ | 3.5” | 990 | $3737 |
Dimensions:
- Overall Length_68.7″
- Overall Width: 37.8”
- Recommended Aisle Width_90″
- Turning Radius: 56″
- Mast Height Lowered: 82.7”
- Mast Height Raised: 140.3”
- Load Center: 15.7″
- Wheel Diameter : 7”/3.15”
Forks:
- Fork height, Lowered: 3.5”
- Thickness: 2.3”
- Width: 5.6”
- Length: 42”
- Adjustable fork width 11.8-36.6”
Features:
- Foot pedal brake for safety and ramp usage.
- Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
- With hydraulic leveler control lifting and lowering, speed is adjustable.
Speed:
- Lifting speed(laden/unladen) : 2/3.2mph
- Lowering speed(laden/unladen) : 3.9/3.5mph
Specifications:
- Not explosion proof.
- This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it’s not in use.
