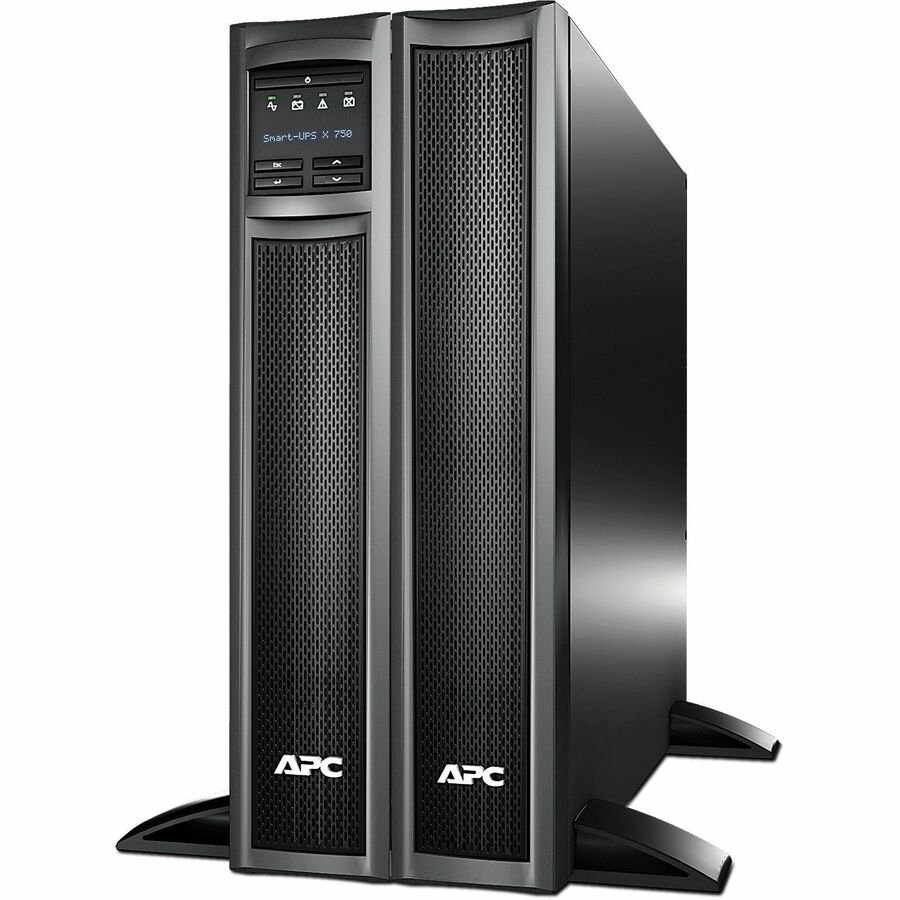

APC by Schneider Electric Smart-UPS SMX 750VA Tower/Rack Convertible UPS

APC by Schneider Electric Smart-UPS SMX 750VA Tower/Rack Convertible UPS
General Information

Manufacturer:

Schneider Electric SA

Manufacturer Part Number:

SMX750C

Manufacturer Website Address:

http://www.schneider-electric.com

Brand Name:

APC by Schneider Electric

Product Line:

Smart-UPS

Product Series:

SMX

Product Name:

Smart-UPS SMX 750VA Tower/Rack Convertible UPS

Marketing Information:

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Product Type:

Line-interactive UPS

Technical Information

AVR:

Yes

Plug/Connector Type:

NEMA 5-15P

Receptacle Type:

NEMA 5-15P

Receptacle Detail:

8 x NEMA 5-15R

Number of Battery & Surge Outlets:

8

Cord Length:

8 ft

Transfer Time:

0 ns

Application/Usage:

Mission Critical EquipmentServer RoomBusinessIT InfrastructureSecurity SystemCommunication SystemElectronicVoIPTelecommunicationWorkstationNetwork DevicePOS TerminalEdge ComputingData StorageMobile DeviceTabletComputer

Power Description

Load Capacity (VA):

750 VA

Load Capacity (Watt):

675 W

Input Voltage:

120 V

Input Voltage Range:

82 V AC – 144 V AC

Output Voltage:

120 V AC

Input Frequency:

63 Hz

Output Frequency:

127 Hz

Waveform Type:

Sine Wave

Surge Energy Rating:

645 J

Management

Network Management:

SmartConnect

Alarm:

On BatteryLow BatteryOverload

Controls/Indicators

Status Indicators:

Control Panel: Multi-Function LCD Status Control Console

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

EPO Port:

Yes

USB (HID Compliant) Port:

Yes

Battery Information

Number of Batteries:

1

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

12 Minute

Backup/Run Time (Half Load):

25.60 Minute

Typical Battery Recharge Time:

3 Hour

Physical Characteristics

Color Family:

Black

Product Color:

Black

Height:

17.01″ (432 mm)

Width:

3.50″ (89 mm)

Depth:

19.29″ (490 mm)

Rack Height:

2U

Form Factor:

Rack-mountable

Mounting Preference:

Lower

Weight (Approximate):

22.05 kg

Miscellaneous

Package Contents:

Smart-UPS SMX 750VA Tower/Rack Convertible UPS Cat 5 Ethernet cableInstallation guideRack mounting bracketsRemovable support feetSmart UPS signalling RS-232 cableUSB cableWarranty card

Certifications & Standards:

cUL Listed|ENERGY STAR V2.0 (USA)

Software Included:

Powerchute Serial Edition

Energy Star:

Yes

Green Premium:

Yes

Mercury Free:

Yes

RoHS Exemption Information:

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX750C_ROHS_DECLARATION&p_FileName=SMX750CKIT_ROHS_DECLARATION_US.pdf

REACH Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555124198&lang=en-us

EU RoHS Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555124198&lang=en-us

Environmental Profile Availability:

https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN

End of Life Manual Availability:

https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN

Energy Star URL:

https://www.energystar.gov/products/uninterruptible_power_supplies

REACH free of SVHC:

No

WEEE Statement:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Country of Origin:

Philippines

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

3 Year

Additional Warranty Information:

3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect

Directly Connected Equipment Guarantee:

$150000 Lifetime
